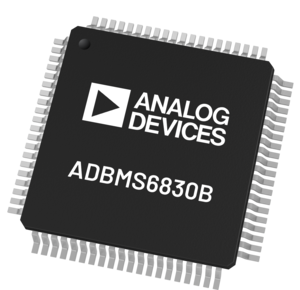

ADBMS6830B

RECOMMENDED FOR NEW DESIGNS

16-Channel Multicell Battery Monitor

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $12.51

Viewing:

Part Details

Measures up to 16 battery cells in series
Maximum lifetime TME: ±1.8 mV at 3.3 V per cell (–40°C to +125°C)
Simultaneous and continuous measurement of cell voltages
Configurable integrated low-pass filtering
Stackable architecture for high voltage battery packs
Built-in isoSPI interface
- 2 Mbps isolated serial communications
- Uses a single twisted pair, up to 20 meters per segment
- Low EMI susceptibility and emissions
- Bidirectional for broken wire protection
- Capacitor or transformer-coupled

Hot plug tolerant without external protection
Passive cell balancing up to 300 mA per channel with programmable PWM
Up to 10 general-purpose analog inputs or digital I/O
- Temperature or other sensor inputs
- Configurable as an I²C or SPI master
LPCM for cell and temperature monitoring in key-off state
4 μA sleep mode supply current
Provisions for bus bars

Part Models: 2
1ku List Price: Starting From $12.51

Documentation

Data Sheet 1

ADBMS6830B: 16-Channel Multicell Battery Monitor (Rev.0) 02/27/2024

Technical Articles 1

A Deeper Look into Open Wire Detection on Battery Management Systems 01/16/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADBMS6830BCSWZ	LQFP 1.4 MM W/ THERMAL PAD	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADBMS6830BCSWZ-RL	LQFP 1.4 MM W/ THERMAL PAD	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

16-Channel Battery Stack Monitor Evaluation Board for Broad Market Applications

Buy Now View Details

Features and Benefits

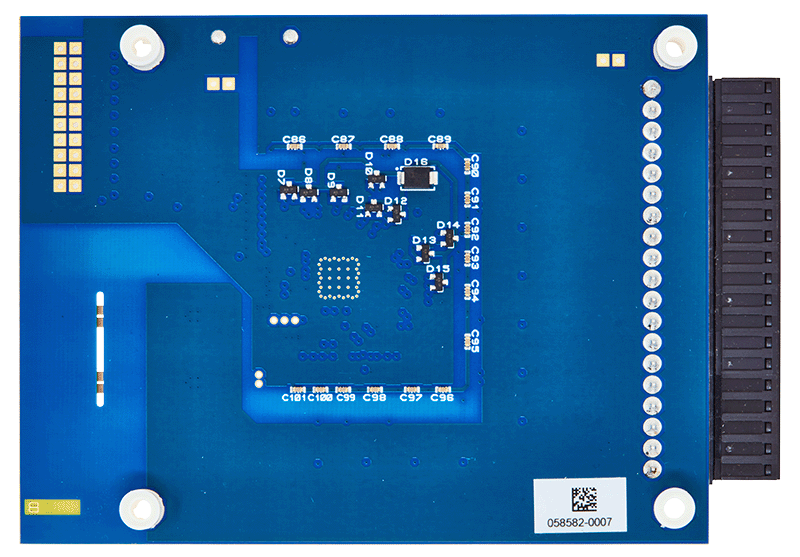

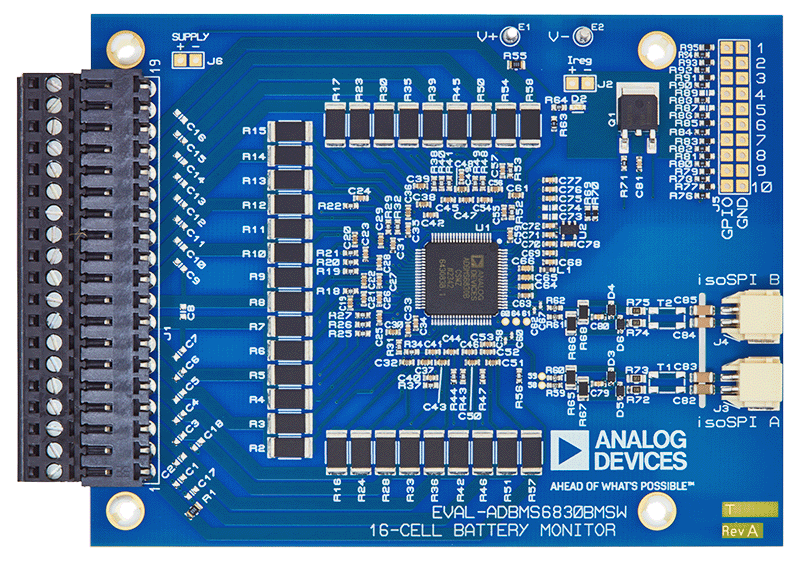

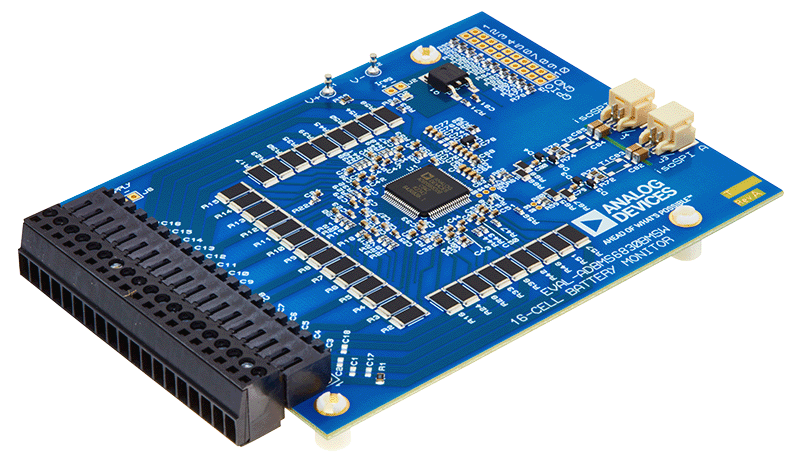

Full featured evaluation board for the ADBMS6830B
Demonstrates high-performance measurements of the ADBMS6830B
Includes two isoSPI ports for reversible isoSPI support
Daisy-chain capability
Accessible cell and GPIO connections via optional connectors
Accessible isoSPI connections via simple DuraClik connectors
Compatible with EVAL-ADBMS6822 dual master isoSPI board
With PC-based software for control and data analysis using Broad Market Browser BMS GUI
Basic embedded code functions for cell monitoring and diagnostics

Product Details

The EVAL-ADBMS6830BMSW is a full-featured evaluation board for the ADBMS6830B, a 16-channel battery stack monitor for broad market applications. This board allows multiple boards to be linked through a single twisted pair wire interface (isoSPI) to monitor a long series of cells in a stack. It provides access to full channel monitoring to all cells going to battery pack either in the supply line or in the V+ to V- line. The evaluation board also features reversible isoSPi that can access either path to do measurement functions and serve as a redundant communication path. The PCB, components, and DuraClik connectors are optimized for low EMI susceptibility and emissions.

APPLICATIONS

Mobile Robot System
E-scooter/E-bikes/Light Electric Vehicle
Agricultural Gateway Hubs
Metering Technology
Power Tools
Portable Energy Storage System
Industrial Equipment Battery Monitoring

Resources

EVAL-ADBMS6830BMSW User Guide

EVAL-ADBMS6830BMSW Design Support Files
4.85 M

Software

EVAL-ADBMS6830BMSW Evaluation Software (Rev.2.0.0)

Cell and Pack Monitoring Kit for Broad Market Applications

Buy Now View Details

Features and Benefits

Accurate voltage and current measurement
Highly scalable and ease of integration
Robust isoSPI capability implementable in daisy chain high count
Inclusive passive balancing with individual pulse-width modulation
Isolated power supply between microcontroller and battery monitoring devices
High voltage and current supply measurement
Fast overcurrent (OC) measurement
Redundancy measurement
Modular BMS Solution
Ready to use Broadmarket BMS GUI for Evaluation

Product Details

The AD-CELLPACKBM-SL is a complete BMS kit consisting of the EVAL-ADBMS6830BMSW 16-channel cell monitoring module, the EVAL-ADBMS2950-BASIC pack monitoring module, EVAL-ADBMS6822 isoSPI adapter, and a microcontroller board.

The AD-CELLPACKBM-SL can operate either in embedded mode or through a PC-based graphical user interface. Complete with working software and hardware, as well as software examples, this kit makes it easier for customers to prototype and create connected systems and solutions for BMS applications.

This package comes with the SDP-K1 as its MCU module, but the BMS components included in this kit are also compatible for use with other controller boards such as the AD-APARD32690-SL or MAX32690EVKIT.

Upon purchase, the AD-CELLPACKBM-SL kit comes with the following boards and accessories:.

Boards

2x EVAL-ADBMS6830BMSW 16-Channel Battery Cell Monitor (can be purchased separately)
1x EVAL-ADBMS2950-BASIC Battery Pack Monitor (can be purchased separately)
1x EVAL-ADBMS6822 Dual isoSPI Adapter (can be purchased separately)
1x EVAL-SDP-CK1Z (SDP-K1) Controller Board (can be purchased separately)
2x DC2472A Battery Cell Emulator (can be purchased separately)
1x MAX32625PICO Programming Adapter with 10-pin SWD cable (can be purchased separately)
