AD8327

Obsolete

5 V CATV Line Driver Coarse Step Output Power Control

Data Sheet (Rev. 0)

Viewing:

Part Details

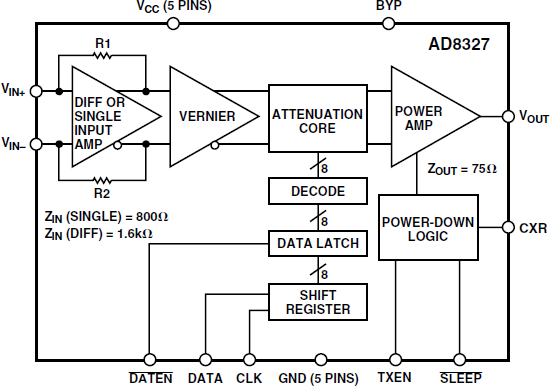

Supports DOCSIS Standard for
Reverse Path Transmission
Gain Programmable in 6.02 dB
Steps over a 48.16 dB Range
Low Distortion at 60 dBmV Output
–63 dBc SFDR at 21 MHz
–57 dBc SFDR at 42 MHz
Output Noise Level
–47 dBmV in 160 kHz

Maintains 75Ω Output Impedance
Transmit Enable and Transmit
Disable Modes
Upper Bandwidth: 160 MHz (Full Gain Range)
5 V Supply Operation
Supports SPI Interfaces

Documentation

Application Note 1

AN-851: A WiMax Double Downconversion IF Sampling Receiver Design (Rev.0) 07/26/2006

Frequently Asked Question 1

FAQ 03/03/2022

Obsolete Data Sheet 1

AD8327: 5 V CATV Line Driver Coarse Step Output Power Control Obsolete Data Sheet (Rev.0) 09/28/2006

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

AD8327 Evaluation Board

Buy Now View Details

Product Details

This control software is for the AD8327. An 8-bit serial word determines the desired output gain over a 48.16 dB range, resulting in gain changes of 6.02 dB/major carry. Full data on the AD8327 and the evaluation board features is available in the AD8327 datasheet available and should be consulted in conjunction with this Technical Note when using the Evaluation Board. On-board components include an input transformer to convert single ended input signals into a differential signal, a diplexer to allow insertion into a cable modem system, and various options for input and output terminations.
