MAX44206
180MHz, Low-Noise, Low-Distortion, Fully Differential Op Amp/ADC Driver
Industry's Best Combination of Low Power, Low Noise, THD, and Gain Bandwidth
Part Details
- Low Input Noise Drives Precision SAR ADCs
- 3.1nV/
at 1kHz
- 200nVP-P from 0.1Hz to 10Hz
- 3.1nV/
- High Speed for DC and AC Applications
- Gain-Bandwidth Product 400MHz
- -3dB Gain-Bandwidth Product 180MHz
- Slew Rate 180V/µs
- Ultra-Low Distortion Drives AC Inputs to 20-Bit SAR ADCs
- HD2 = -141dB, HD3 = -152dB at fIN = 10kHz, VOUT,DIFF = 2VP-P
- HD2 = -106dB, HD3 = -115dB at fIN = 1MHz, VOUT,DIFF = 2VP-P
- Wide Supply Range (2.7V to 13.2V) Drives Unipolar or Bipolar (±6.6V) Signals
- 3.7mA Quiescent Supply Current with Only 6.8µA Shutdown Current
- 8-Pin µMAX Package Saves Board Space

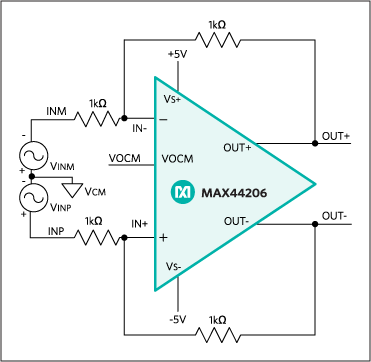

The MAX44206 is a low-noise, low-distortion fully differential operational amplifier suitable for driving high-speed, high-resolution, 20-/18-/16-bit SAR ADCs, including the MAX11905 ADC family. Featuring a combination of wide 2.7V to 13.2V supply voltage range and wide 400MHz bandwidth, the MAX44206 is suitable for low-power, high-performance data acquisition systems.
The MAX44206 offers a VOCM input to adjust the output common-mode voltage, eliminating the need for a coupling transformer or AC-coupling capacitors. This adjustable output common-mode voltage allows the MAX44206 to match the input common-mode voltage range of the ADC following it. Shutdown mode consumes only 6.8µA and extends battery life in battery-powered applications or reduces average power in systems cycling between shutdown and periodic data readings.
The MAX44206 is available in an 8-pin µMAX® package and is specified for operation over the -40°C to +125°C temperature range.
Applications
- Active Filters
- Fully-Differential Signal Conditioning
- High-Speed Process Control
- Medical Imaging
- Single-Ended to Differential Conversion
