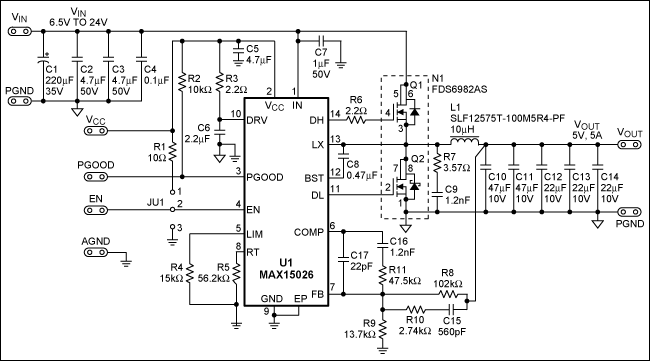

图1. 同步整流降压转换器MAX15026在300kHz开关频率下的电路图
规格
Key specifications for the reference design are listed below, along with a detailed schematic (Figure 1) and the bill of materials (Table 1) needed for this application.
Specifications:
- 输入电压范围：6.5V至24V
- 输出电压：5V
- 输出电流：5A
- 输出电压纹波(峰峰值)：50mV
- 转换器开关频率：300kHz
- 过流保护限制：6A
- 效率：> 90% (标准工作模式)
