MAXREFDES1301

描述

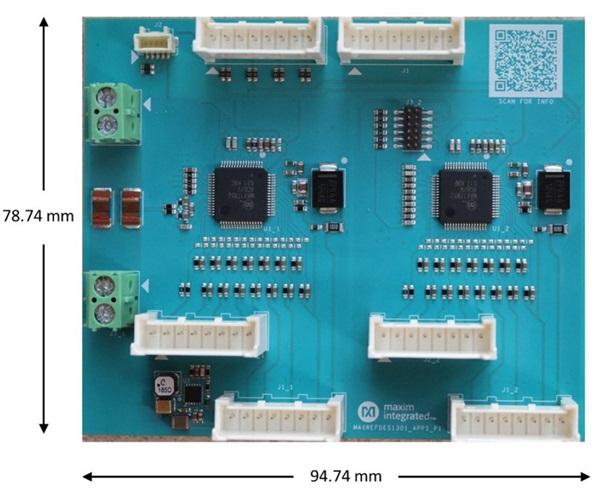

The MAXREFDES1301 reference design enables quick evaluation of the MAX17852 and MAX17853 for 96V three-Wheeler BMS.

This reference design showcases the capabilities of the MAX17852 and MAX17853 in a daisy chain for the two individual 14-cell voltage measurements, pack voltage, pack current, temperature measurement, and passive cell balancing.

The MAX17852 and MAX17853 supports the ASIL-D requirements for cell voltage, temperature, current, communication, and failure mode effects analysis (FMEA).

优势和特点

• 6 to 28 cell (minimum 3 cells per pack) voltage measurement with ±2mV accuracy at 5°C to 40°C
• Supports flexi pack configuration
• Pack current measurement using external current sense resistor
• Passive cell balancing up to 300mA with internal switch using odd or even cell balancing scheme (single cell or group)

  • Auto cell balancing configuration with undervoltage (UV) threshold and timer options
  • Manual cell balancing configuration
• Configurable auxiliary inputs

  • Six aux channels for the MAX17853, all configured for temperature measurement
  • Four aux channels for the MAX17852, configured for I²C and GPIO
• Internal die temperature measurement
• Individually configurable safety alert

  • Overvoltage (OV), undervoltage, overtemperature and under temperature faults
  • One cell mismatch alert
• Selectable universal asynchronous receiver-transmitter (UART) or serial peripheral interface (SPI)
• ART configurations with packet error checking (PEC)

  • Dual UART configuration with redundancy
  • Single UART configuration
• Compatible with the MAX17852 and MAX17853 EV Kit software along with MINIQUSB board
