MAXREFDES1274

描述

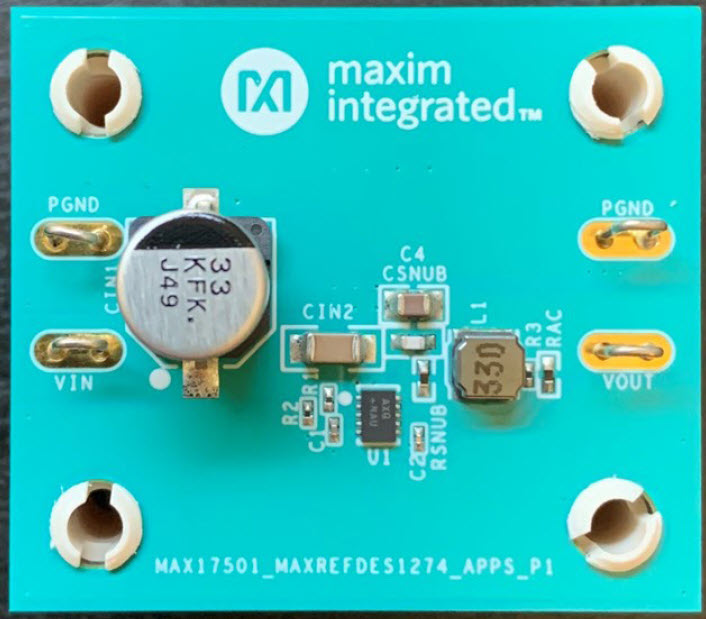

The MAXREFDES1274 is a buck converter using the MAX17501F high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs and internal compensation. This design produces a 5V output at up to 500mA from a wide input range of 6.5V to 60V. The device features peak-current-mode control with pulse-width modulation (PWM). The MAXREFDES1274 was optimized for small solution size and is laid out on a two-layer PC board.

优势和特点

• Ultra-Compact Layout (31.52mm² Footprint Size)
• Wide Input Voltage Range of 6.5V to 60V
• 500mA Output Current
• 5V Output Voltage
• 600kHz Switching Frequency
• Adjustable Soft-Start Time (SS)
• Enable/Undervoltage Lockout (EN/UVLO)
• Open-Drain Reset Output Functionality
• Peak-Current-Mode Control with Pulse-Width Modulation (PWM)
