MAXREFDES1218

24V, 3A Average Current, 4A Peak Current Active Clamp Forward DC-DC Converter Using the MAX17599

顶部

设计与集成文件

设计、搭建、测试

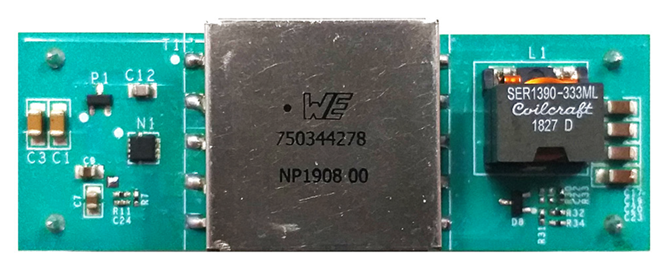

图示的电路板已装配完成且经过测试。

概览

设计资源
描述

设计资源

设计与集成文件

Schematic
PCB Layout
BOM
Test Results

下载设计文件 806.49 K

描述

The MAXREFDES1218 is an active-clamp forward power supply that delivers up to 4A at 24V from a 18V to 36V supply voltage. It is designed for industrial equipment that needs high power isolated power supply. The typical application of the MAXREFDES1218 is an IO-Link® application that needs a 24V isolated voltage from an industrial 24V supply voltage.

The MAXREFDES1218 illustrates techniques using the active-clamp forward controller to generate isolated voltages. This document explains how the MAX17599 activeclamp forward controller can be used to generate 24V isolated voltage from 18V to 36V input voltage. An overview of the design specification is shown above.
