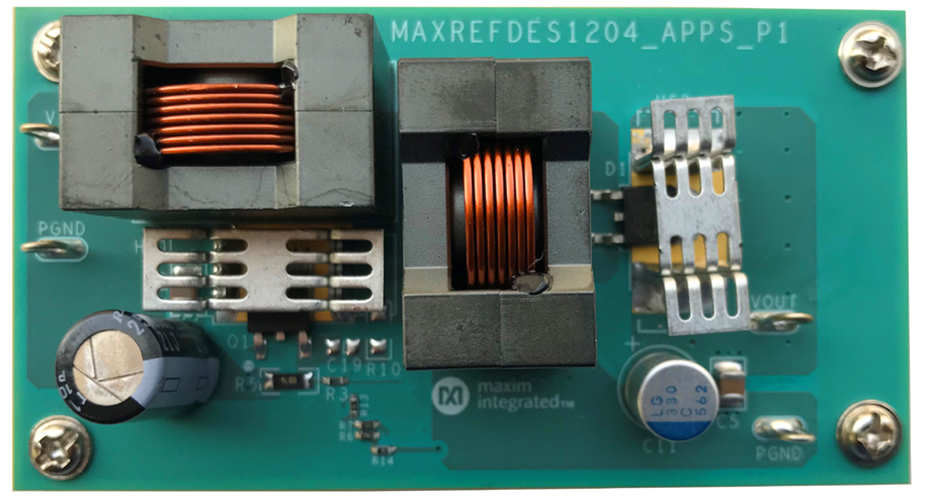

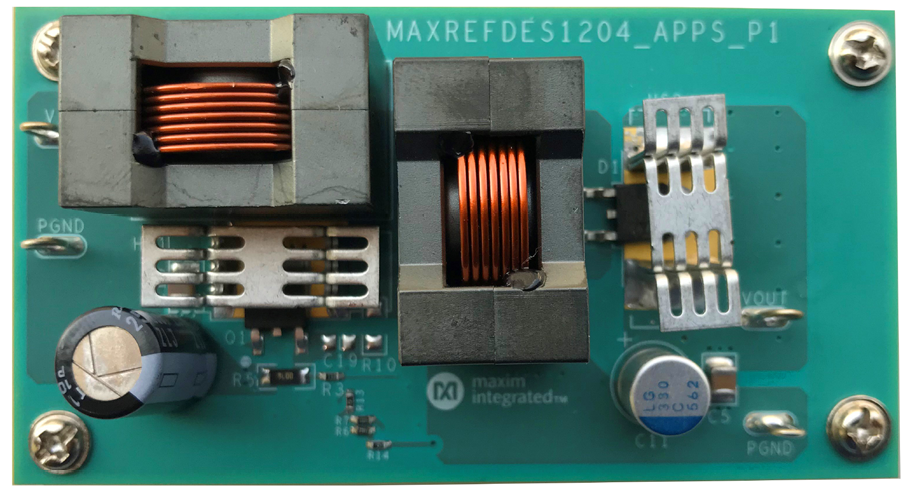

MAXREFDES1204

描述

The MAXREFDES1204 is a single-output SEPIC converter reference design developed using the MAX16990 controller. This reference design is rated to operate over a wide input voltage range from 6V to 18V. The design can deliver an output power of 24W at 12V. It is targeted for automotive applications.

优势和特点

• Very High Efficiency > 90% for Load > 25%
• Very Low Line and Load Regulation < 0.02%
• Output Voltage Ripple < 0.7% at Nominal VIN
• Overshoot < 2.6% for 50% Step Load
• Continuous Conduction Mode (CCM) Operation
• Internal Soft-Start
