EVAL-ADUC7060

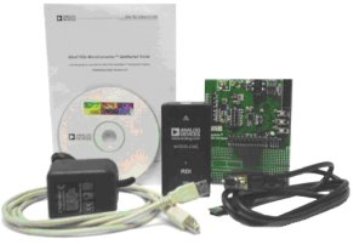

ADuC7060 QuickStart Plus开发系统
顶部
概览
优势和特点
- 2-layer PCB (4 in. × 5 in. form factor)
- 9 V power supply regulated to 3.3 V and 2.5 V on board
- 4-pin UART header to connect to RS-232 interface cable
- 20-pin standard JTAG connector
- Demonstration circuit
- 32.768 kHz watch crystal to drive the PLL clock
- ADR280 1.2 V external reference chip
- Reset/download/IRQ0 push buttons
- Power indicator/general-purpose LEDs
- Access to all ADC inputs and DAC output from external header; all device ports are brought out to external header pins
- Surface-mount and through-hole general-purpose prototype area
产品详情
用于评估ADuC7060（低功耗、精密模拟微控制器、双通道Σ-Δ型ADC、Flash/EE、ARM7TDMI）的开发系统。文档
-
MicroConverter® On-Chip Download/Debug Kernel2024/1/17
-
MicroConverter Development Tools2015/2/14
-
Gerber Files2009/8/28ZIP
-
Schematics/Layout2009/8/28ZIP
-
AN-724: ADuC702x Serial Download Protocol2014/9/8PDF190 K
