EVAL-ADP5024

ADP5024评估板

顶部

概览

Full featured evaluation boards for the ADP5024
Standalone capability
Simple device measurements, including line and load regulation, demonstrable with
- A single voltage supply
- A voltmeter
- An ammeter
- Load resistors
Easy access to external components
Cascading options to supply the low dropout (LDO) regulator from either buck regulator
Dedicated enable option for each channel
Mode option to change buck regulators from power save mode (PSM) to pulse-width modulation (PWM) operation

ADP5024采用24引脚、4 mm × 4 mm LFCSP封装。ADP5023/ADP5024为3通道器件，共用一个PCB评估板。

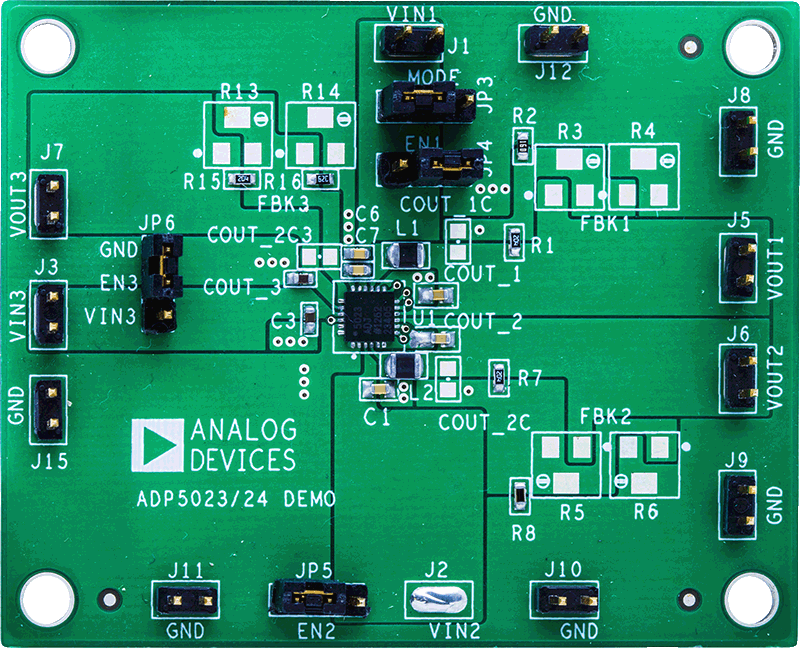

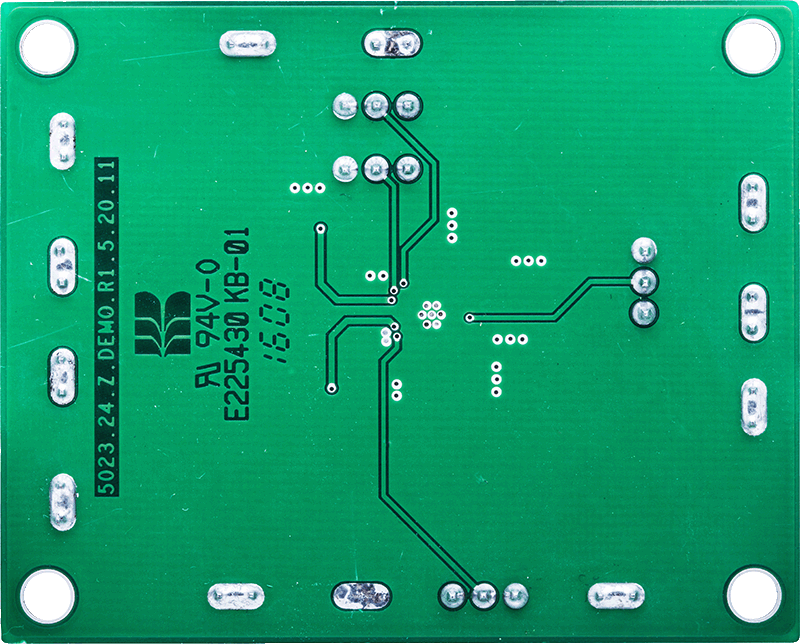

ADP5024评估板，ADP5024CP-EVALZ集成两个降压型调节器，两个LDO调节器支持对ADP5024的评估。评估板提供可调节电压选项。

有关ADP5024的完整详情，可同时参考产品数据手册和本评估板用户指南。
