概览

优势和特点

  • Provides a Convenient Platform for Evaluating theFeatures and Functions of the ADES1754
  • Versatile GUI Interface for Features Evaluation
  • Plug-and-PlayArchitecture for Rapid System Prototyping
  • Force and Sense Pin Headers for PrecisionMeasurement Assessment
  • Built-In Resistor Stack for Battery Emulation
  • Proven PCB Layout Fully Assembled and Tested

产品详情

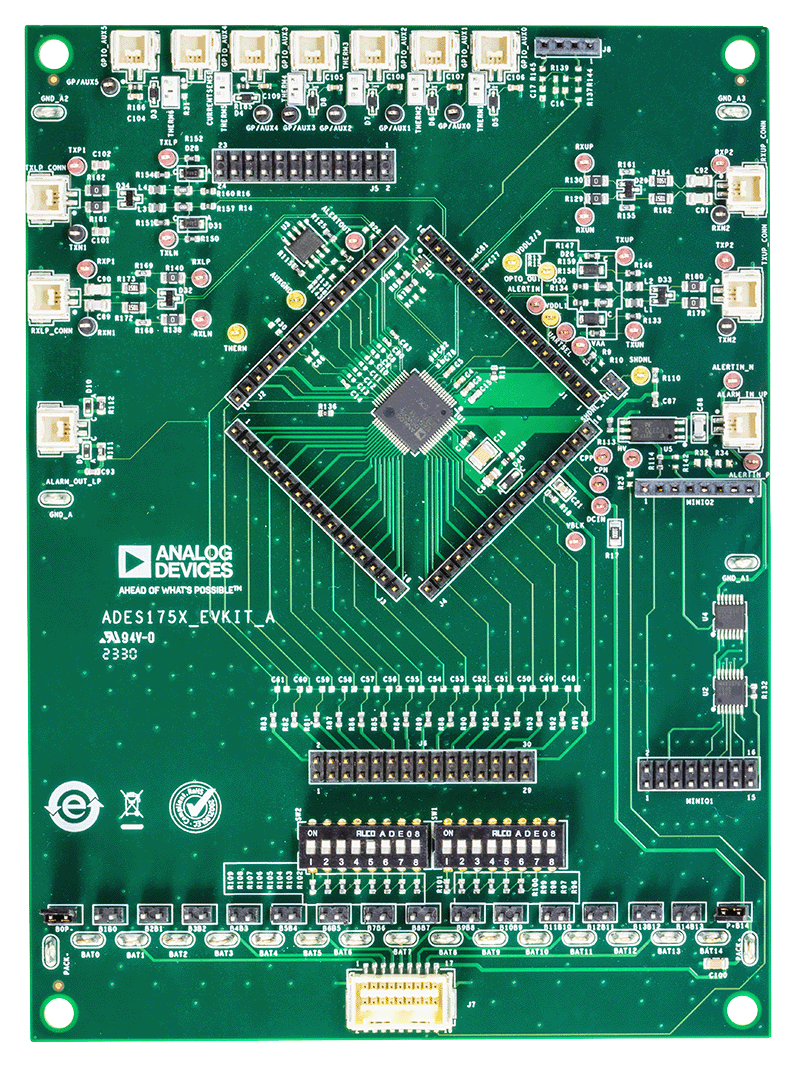

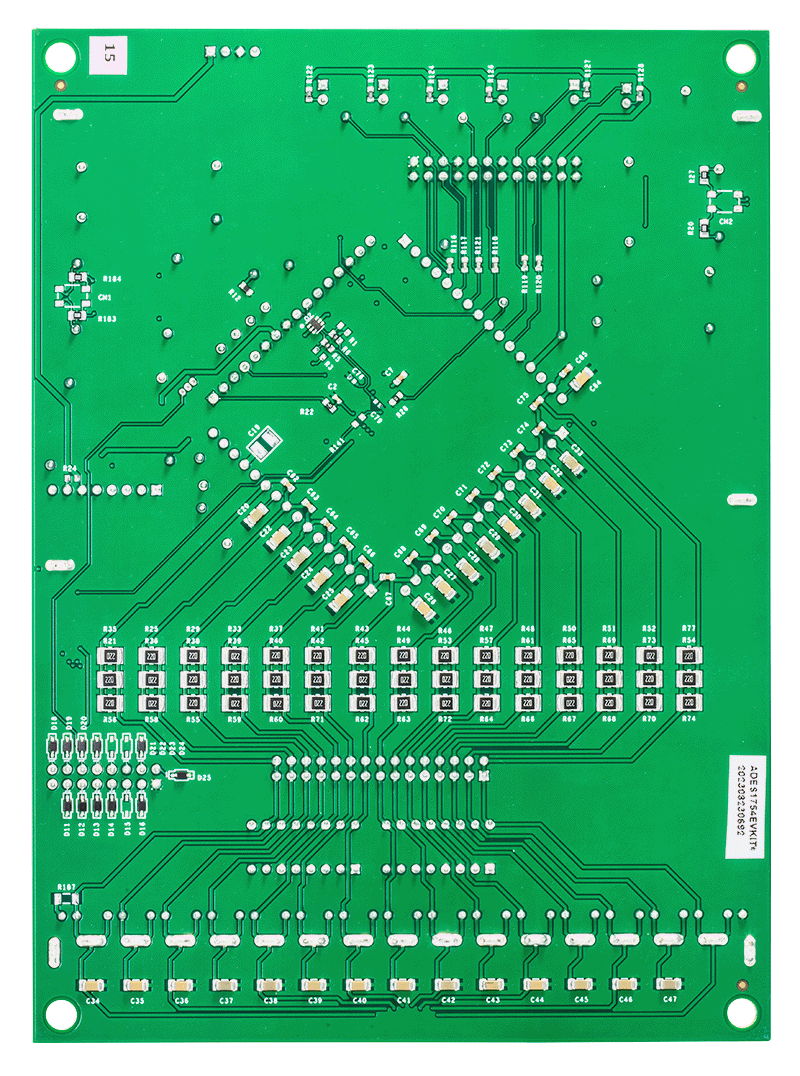

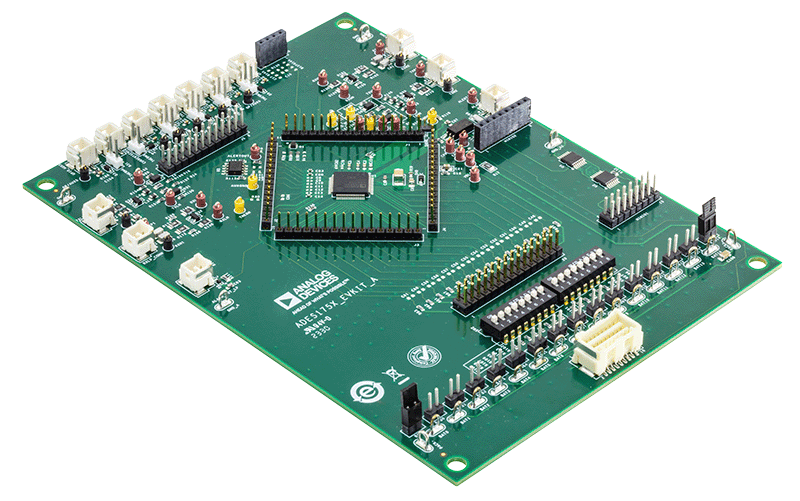

The ADES1754 evaluation kit (EV kit) is used to demonstrate the features and capabilities of the ADES1754/ADES1755/ADES1756 14-channel, high-voltage, smart sensor, data-acquisition interface ICs. The ADES1754 EV kit is coupled with a MAX17851 EV kit to establish communication with a host PC. Once communication is established, control of the ADES1754 EV kit is executed through the EV kit GUI on the host PC. The GUI is Windows XP®-, Windows Vista®-, Windows® 7-, and Windows 10-compatible and is available through your local Analog Devices representative.

Design files for this circuit board are available.

技术与领域

相关产品

包装内含

  • 1x ADES1754EVKIT# Evaluation Board
  • 2x Two Wire CLIK™-Mate 2-wire loop cable, 3 inches
  • 14x Shunt, 2.54mm Pitch Open Top Grip, Black
  • 2x Two Wire CLIK-Mate Crossover Cable, 6 Inches

使用入门

  • One single-UART MAX17851 EV kit
  • 9V to 65V DC power supplies (refer to the ADES1754IC data sheet for recommended operating range)
  • User-supplied Windows XP-, Windows Vista-,Windows 7-, or Windows 10-compatible PC with aspare USB port
