DC2589A
LTM2895 Demo Board | 100MHz SPI µModule Isolator
顶部
概览
产品详情
Demonstration circuit DC2589A shows an LTM2895 isolating and interfacing an LTC2642-16. The LTM2895 is a high speed SPI isolator for interfacing DACs with a full complement of control signals. The LTC2642-16 is a bipolar 16-bit unbuffered voltage output DAC. Low noise isolated power is delivered to the isolated side with a LT3999 push pull driver and isolation transformer.
文档
-

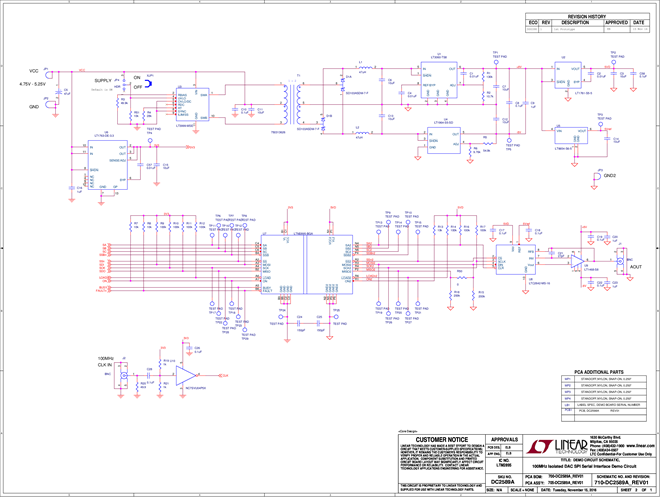

DC2589A - Schematic2017/5/3PDF68K
-
DC2589A - Demo Manual2017/5/3PDF2M
-
DC2589A - Design Files2017/5/3ZIP9M
