DC2172A

LTC7138EMSE Demo Board | HV µPower Buck, 4V ≤ V_IN ≤ 140V, V_OUT = 5V/3.3V/1.8V/Adj @ Up to 400mA

顶部

概览

产品详情

产品详情

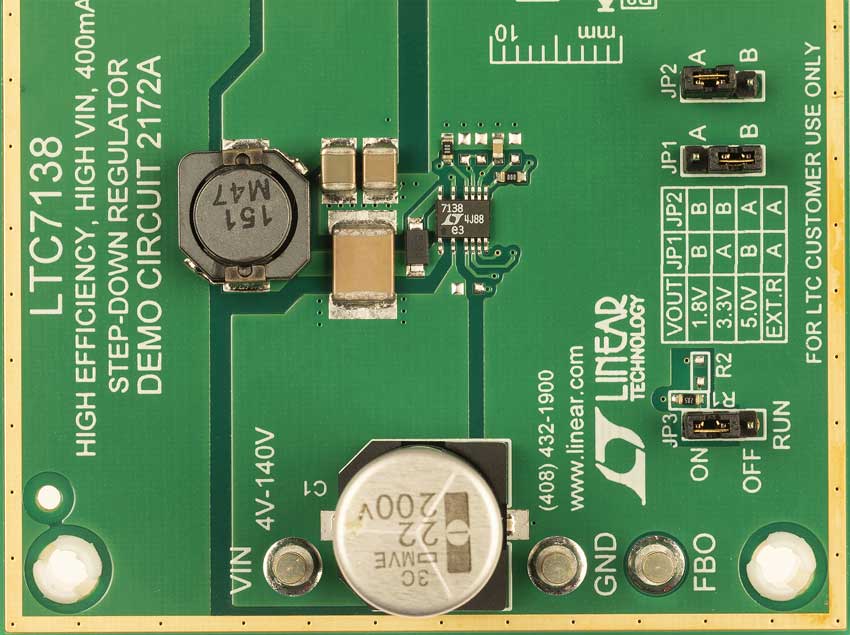

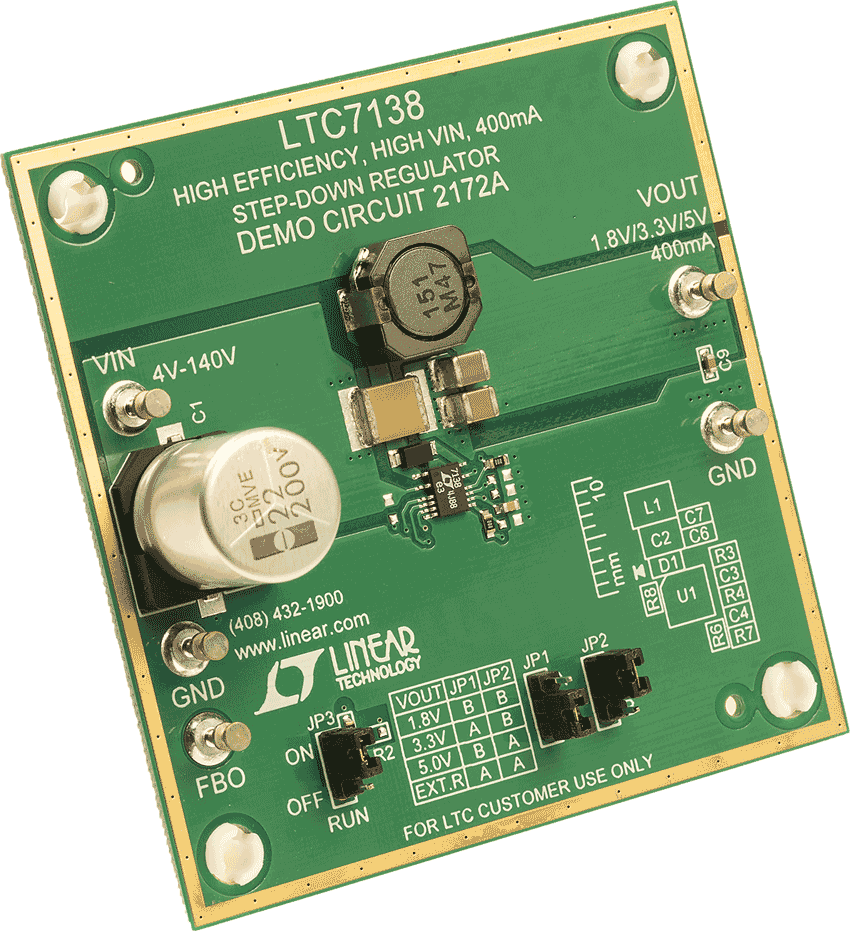

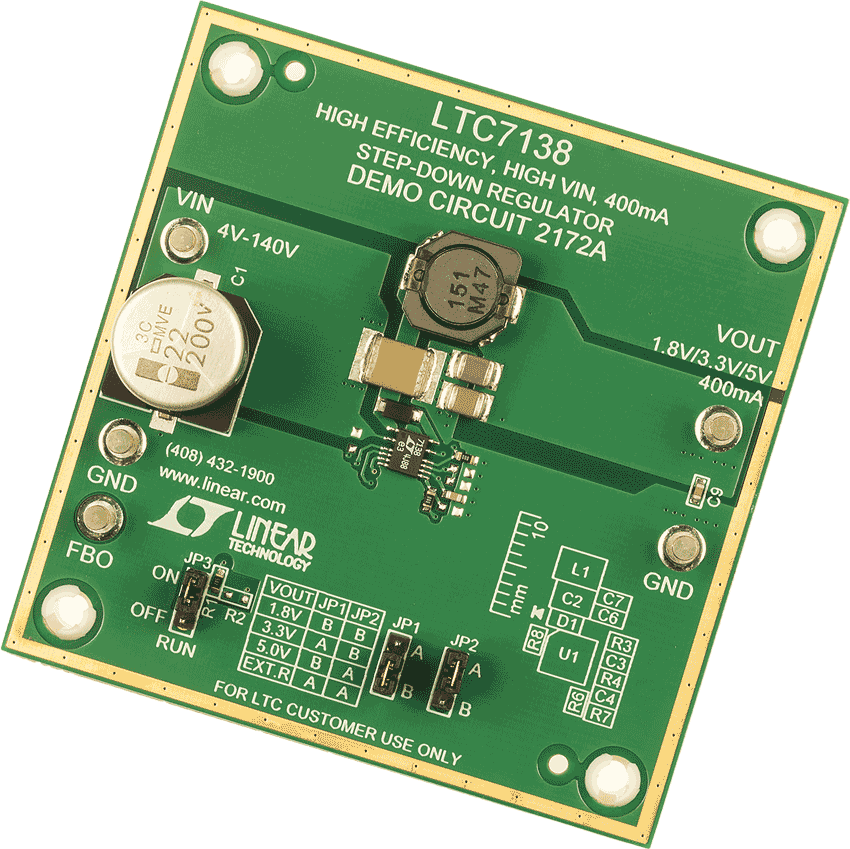

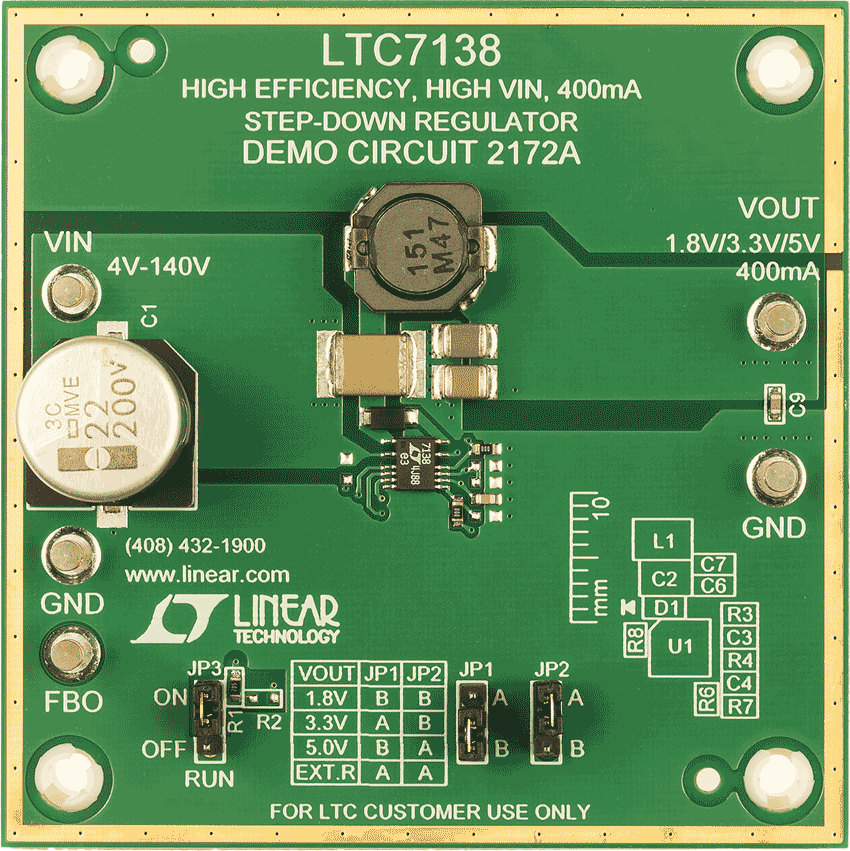

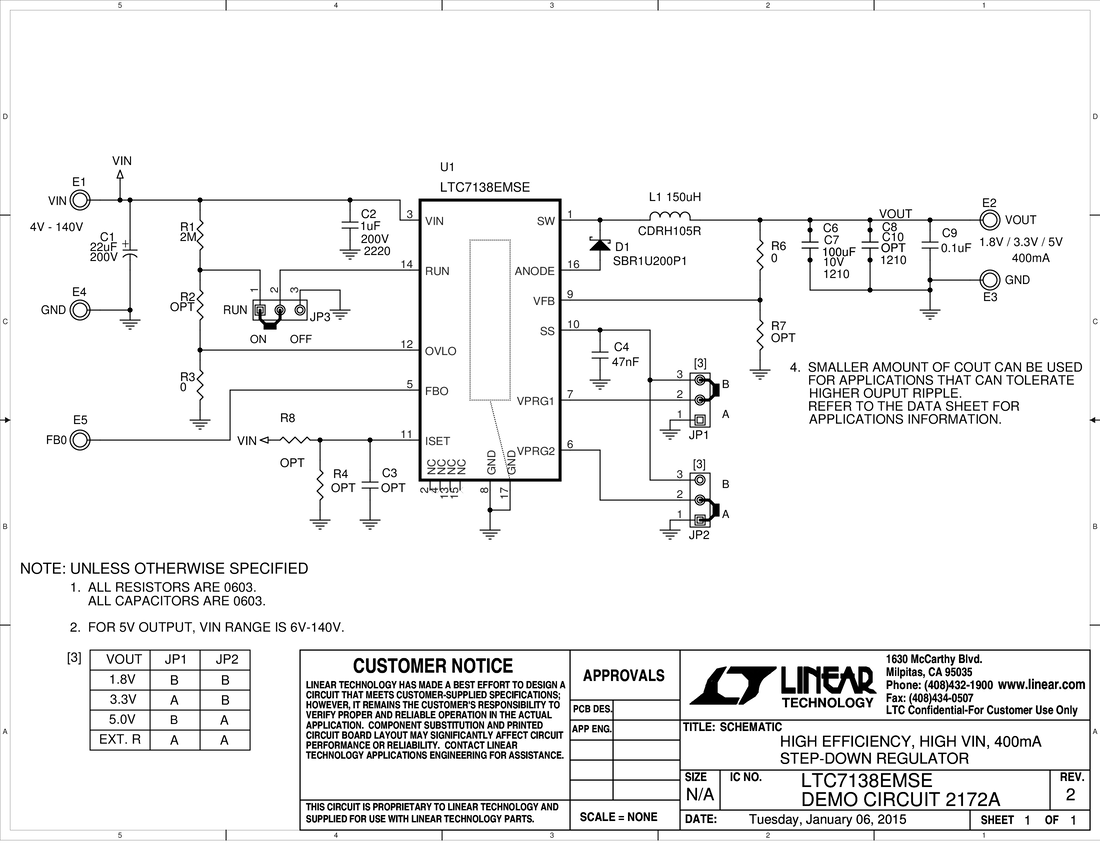

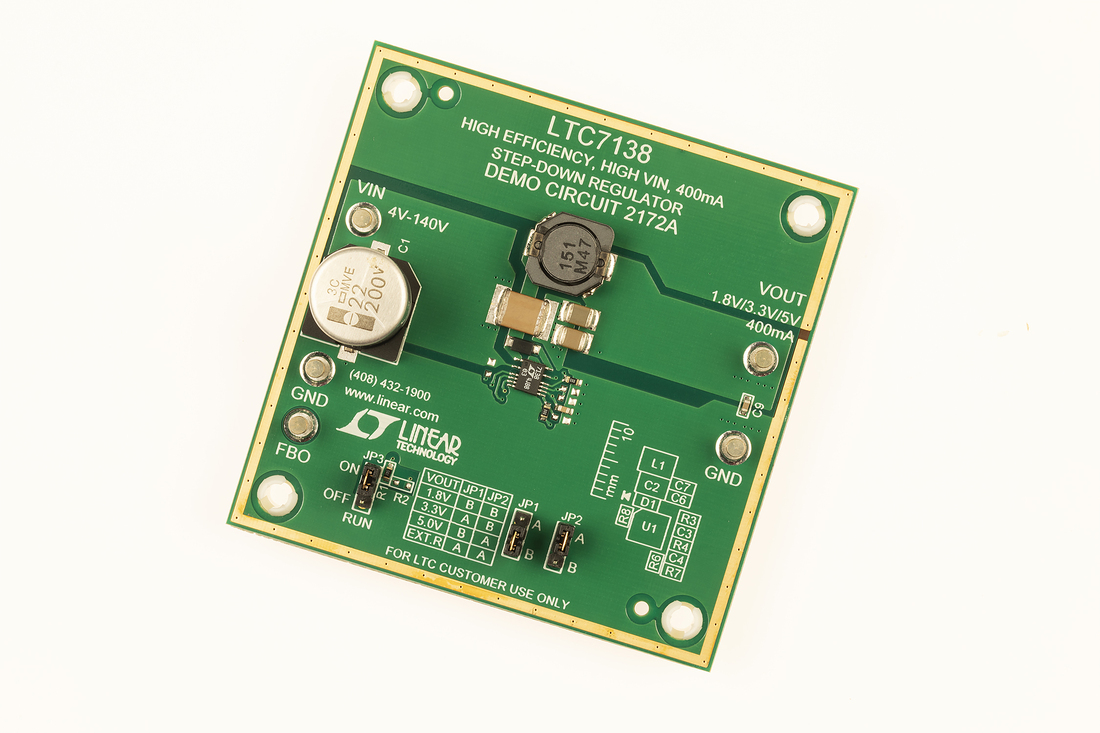

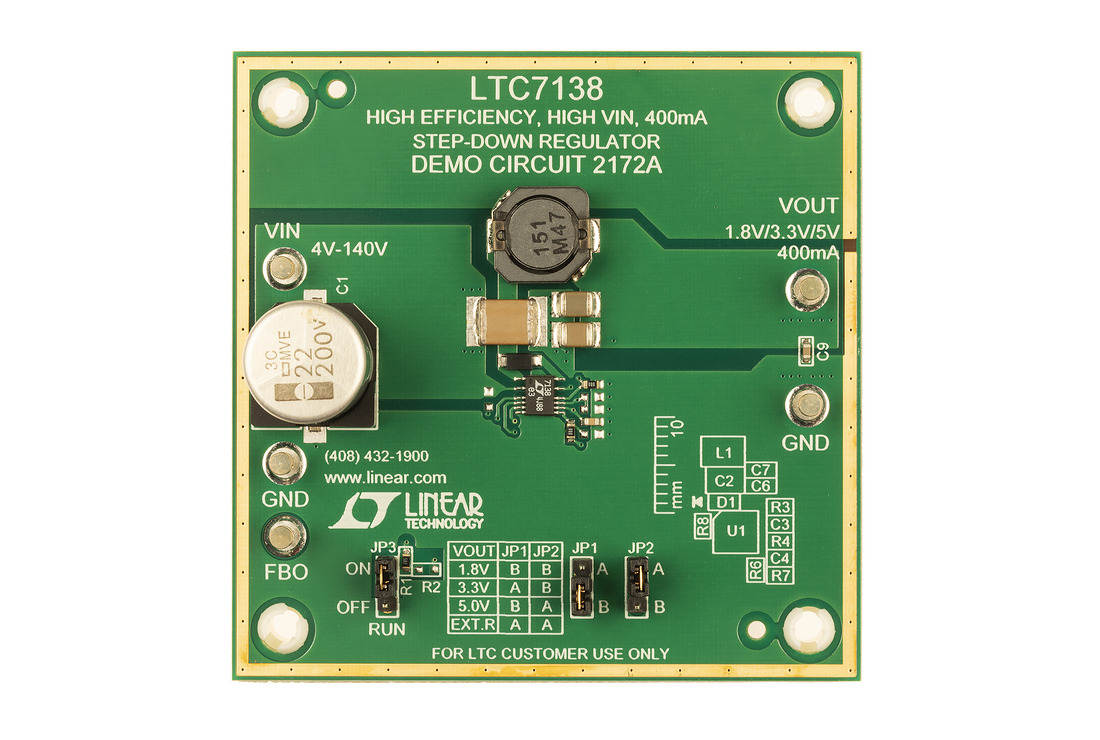

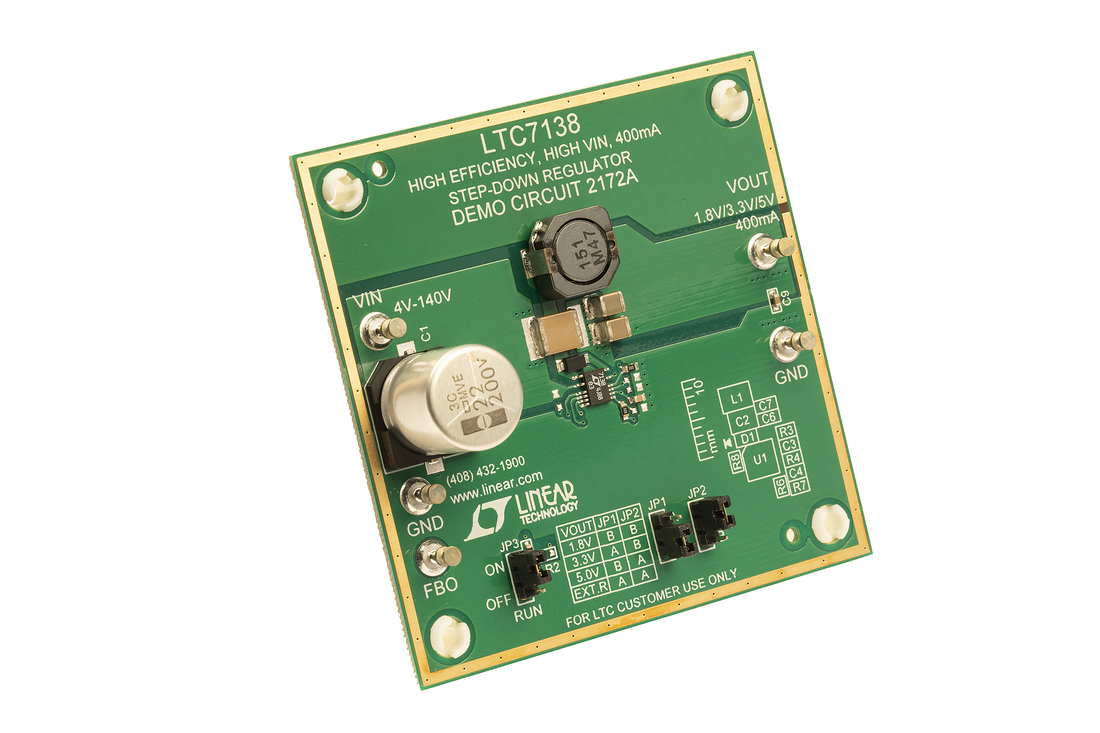

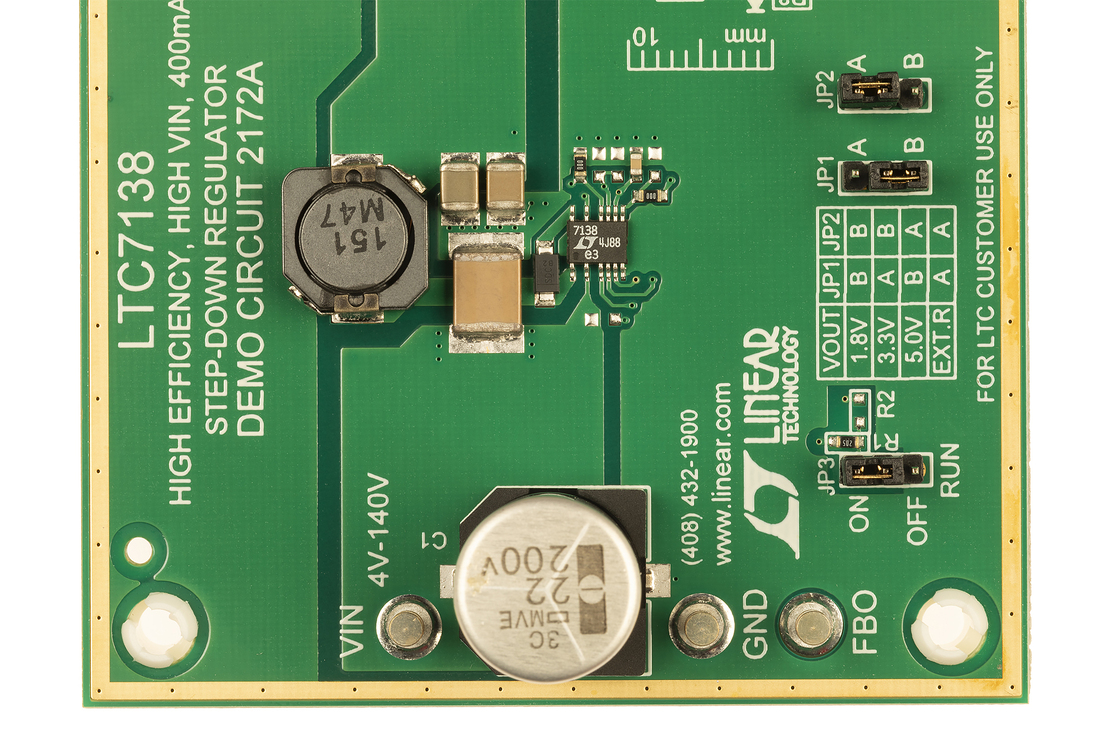

Demonstration circuit 2172A is a high input voltage, 400mA step-down regulator featuring the LTC7138. The output of the regulator can be programmed for either 5V, 3.3V or 1.8V with on-board jumpers or is adjustable from 800mV to V_IN using an optional feedback divider. The input voltage range is from 4V to 140V. The LTC7138’s Burst Mode^® operation, low quiescent current and internal top FET switch provide high efficiency over a wide range of loads.
