概览

优势和特点

  • Evaluates the MAX38656A IC in a (1.58mm x 0.89mm, 0.4mm Pitch) 6-Pin WLP Package
  • 1.8V to 5.5V Input Voltage Range
  • 0.7V to 3.3V Configurable Output Voltage
  • Up to 1.5A Output Current
  • Proven 2-Layer 1oz Copper PCB Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested

产品详情

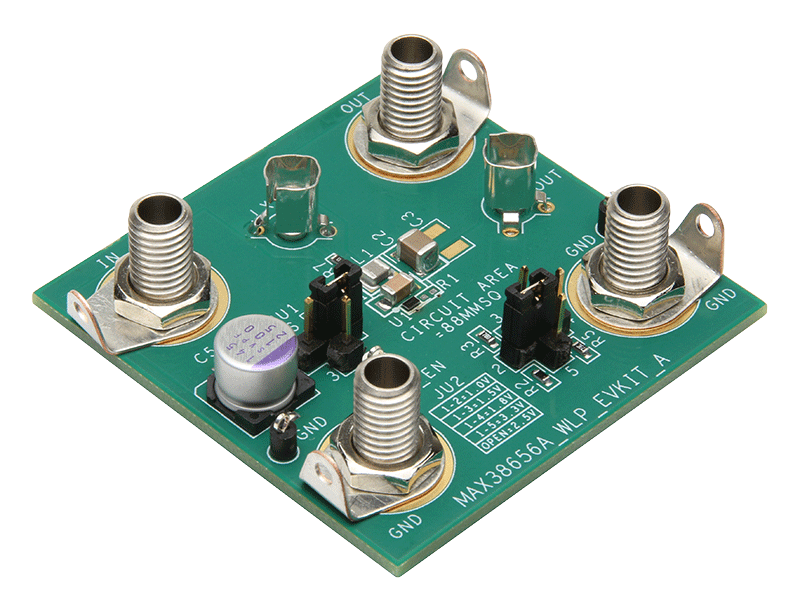

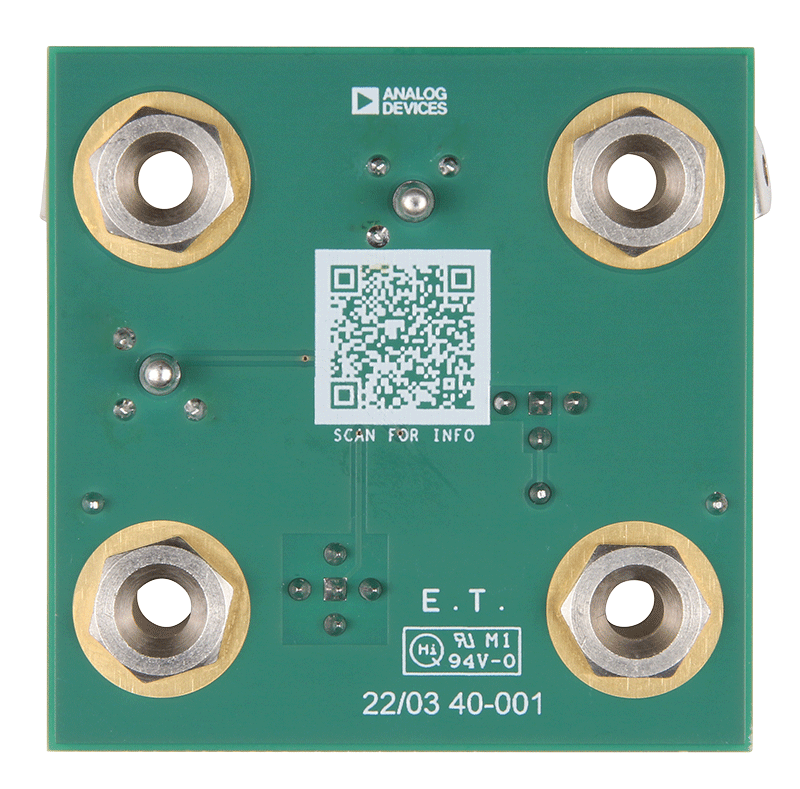

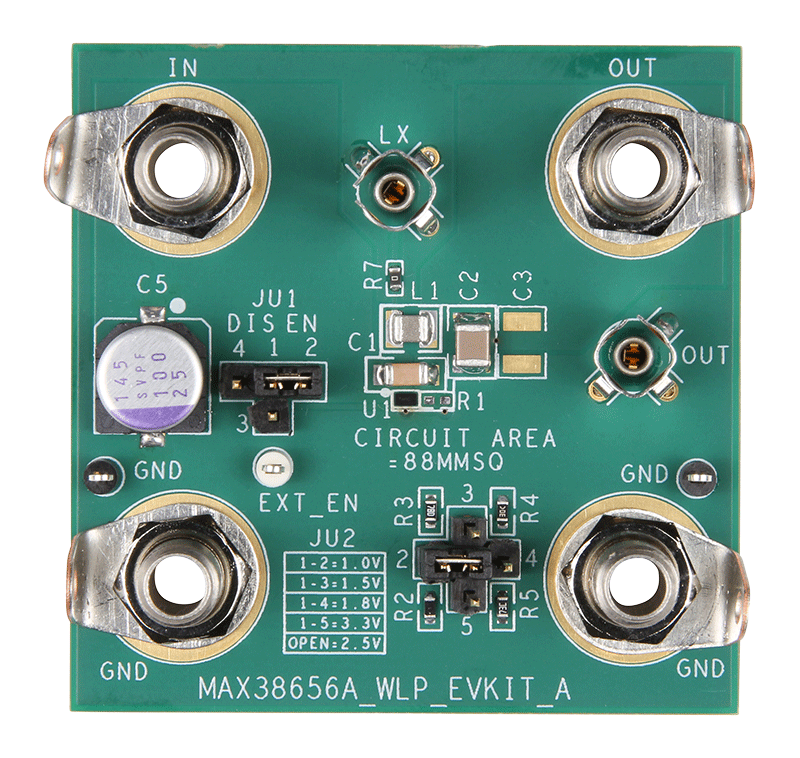

The MAX38656AEVK#WLP evaluation kit (EV kit) evaluates the MAX38656A IC in a WLP package. MAX38656A is a tiny 1.8V to 5.5V Input, 420nA IQ, 1.5A nanoPower Buck Converter with 100% Duty-Cycle Operation. The EV kit operates from an input range of 1.8V to 5.5V and provides resistor-configurable output voltages from 0.7V to 3.3V. The EV kit delivers up to 1.5A of current. The EV kit comes with the MAX38656AANT+ installed. Refer to the MAX38656 datasheet for full MAX38656A IC features, benefits, and parameters.

技术与领域

相关产品

使用入门

  • MAX38656AEVK#WLP EV kit
  • 5.5V, 3A DC power supply
  • Load capable of sinking 1.5A current
  • Digital voltmeter (DVM)
