MAX78630+PPM

Energy Measurement Processor for Polyphase Monitoring Systems

产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • Six Configurable Analog Inputs for Monitoring a Variety of Delta- and Wye-Connected Three-Phase Topologies
  • Supports Current Transformers (CTs), Resistive Shunts, and Rogowski Coils
  • Delta-Sigma ADC with Precision Voltage Reference and On-Chip Temperature Sensor
  • Internal or External Oscillator Timing Reference
  • SPI, I2C, or UART Interface Options with Configurable I/O Pins for Alarm Signaling, Address Pins, or User Control
  • 24-Bit Measurement Processor with Integrated Firmware and Flash Memory for Nonvolatile Storage of Calibration and Configuration Parameters
  • Supports Extraction of Individual Harmonics
  • Small 32-TQFN Package and Reduced Bill of Materials
MAX78630+PPM
Energy Measurement Processor for Polyphase Monitoring Systems

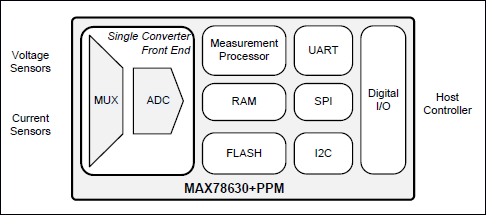

MAX78630+PPM: Diagram
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

评估套件

MAX78630+PPMEVK

MAX78630+PPM评估套件

特性和优点

  • 包括分流器和电流互感器
  • 基于Windows的GUI便于轻松配置和读取测量数据

产品详情

MAX78630+PPM评估套件(EV套件)用于演示MAX78630+PPM使用多达三个电压和三个电流(包括传感器)监控三相交流负载的能力。该EV套件通过USB电缆连接至PC,为该板提供电源和数据通信。基于Windows®的图形用户界面(GUI)与器件通信,简化了对测量数据和控制的访问。

MAX78630+PPM评估套件用户手册



应用

  • 建立自动化系统(商业、工业)
  • 可转换及再生能源系统

MAX78630+PPMEVK
MAX78630+PPM评估套件
