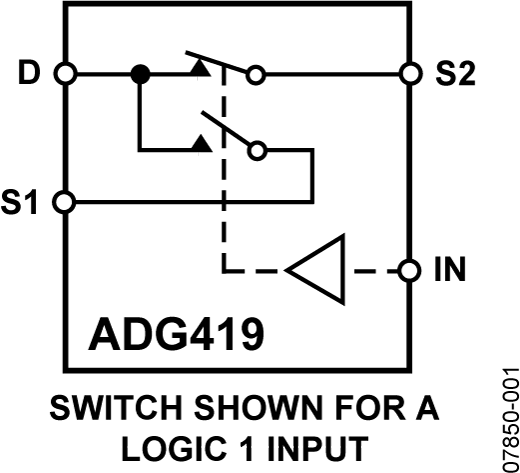

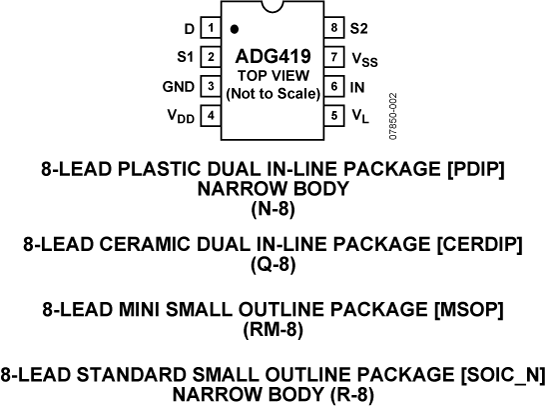

ADG419

量产

LC²MOS 精密模拟开关，采用小型DIP封装

数据手册 (Rev. B) 产品选型表

产品模型: 9

Viewing:

产品详情

最大额定电源电压：44 V
模拟信号范围：V_SS 至 V_DD
低导通电阻：<35 Ω
超低功耗：< 35 μW
快速转换时间：160 ns（最大值）
先开后合式开关动作
DG419的直接替代产品

ADG419-EP支持防务和航空航天应用（AQEC标准）。

下载ADG419-EP 数据手册(pdf)
军用温度范围：-55℃至+125℃
受控制造基线
唯一封装/测试厂
唯一制造厂
增强型产品变更通知
认证数据可应要求提供
V62/10615 DSCC图纸号

产品模型: 9

参考资料
