DS28E54
推荐新设计使用1-Wire SHA3-256 Secure Authenticator with DS2431/DS28E07 Compatibility
- 产品模型
- 10
产品详情
- DS2431/DS28E07 Reverse Compatibility
- 2.25Kbits of EEPROM Memory Partitioned into 11 User Pages of 256 Bits (First Five Pages Compatible)
- 64-Bit Scratchpad Buffer for Compatible Secure Writing with Offset and Individual Addressing
- ±8kV HBM ESD Protection (typ) for IO Pin
- Efficient Secure Hash Algorithm to Authenticate Peripherals
- FIPS 202-Compliant SHA-3 Algorithm for Challenge/Response Authentication and Device Disable
- FIPS 198-Compliant Keyed-Hash Message Authentication Code (HMAC)
- Optional HMAC SHA3-256 Authenticated Write Protection of EEPROM
- Supplemental Features for Easy Integration into End Applications
- 17-Bit, One-Time Settable, Nonvolatile Decrement-Only Counter with Authenticated Read
- Secure Storage for Secret
- 2.25KBits of Secure EEPROM for User Data and Secret
- Unique and Unalterable, Factory-Programmed, 64-Bit Identification Number (ROM ID)
- Advanced 1-Wire Protocol Minimizes Interface to Single Contact
- Standard and Overdrive Communication Speed
- Internal Parasite Power Capacitor
- Operating Range: 2.8V to 5.25V, -40°C to +85°C
- SFN, SFN 6x6, TDFN-EP, TSOC, TO92 Packages
- 4.0μA (typ) Input Load Current
The DS28E54 secure authenticator combines FIPS 202- compliant secure hash algorithm (SHA-3) challenge and response authentication with secured electrically erasable programmable read-only memory (EEPROM).
The device provides a core set of cryptographic tools derived from integrated blocks, including an SHA-3 engine, 2.25Kbit of secured user EEPROM, a decrement-only counter, and a unique 64-bit ROM identification number (ROM ID), all while remaining reverse compatible to the DS2431/DS28E07.
The unique ROM ID is used as a fundamental input parameter for cryptographic operations and serves as an electronic serial number within the application.
The device communicates over the single-contact 1- Wire® bus.
The communication follows the 1-Wire protocol, with the ROM ID acting as the node address in the case of a multidevice 1-Wire network.
Applications
- Medical Tools/Accessories Authentication and Calibration
- Accessory and Peripheral Secure Authentication
- Battery Authentication and Charge Cycle Tracking
- Analog Sensor Calibration
参考资料
数据手册 1
用户手册 1
应用笔记 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| DS28E54+ | TO92 | ||
| DS28E54+T | TO92 | ||
| DS28E54G+T | 2-SFN-6X6X0.9? | ||
| DS28E54G+U | 2-SFN-6X6X0.9? | ||
| DS28E54GA+T | Single-Row Flatpack, No Leads | ||
| DS28E54GA+U | Single-Row Flatpack, No Leads | ||
| DS28E54P+ | Thin Small-Outline C-Lead | ||
| DS28E54P+T | Thin Small-Outline C-Lead | ||
| DS28E54Q+T | Thin Dual Flatpack No Leads, Exposed Pad | ||
| DS28E54Q+U | Thin Dual Flatpack No Leads, Exposed Pad |
这是最新版本的数据手册
工具及仿真模型
评估套件

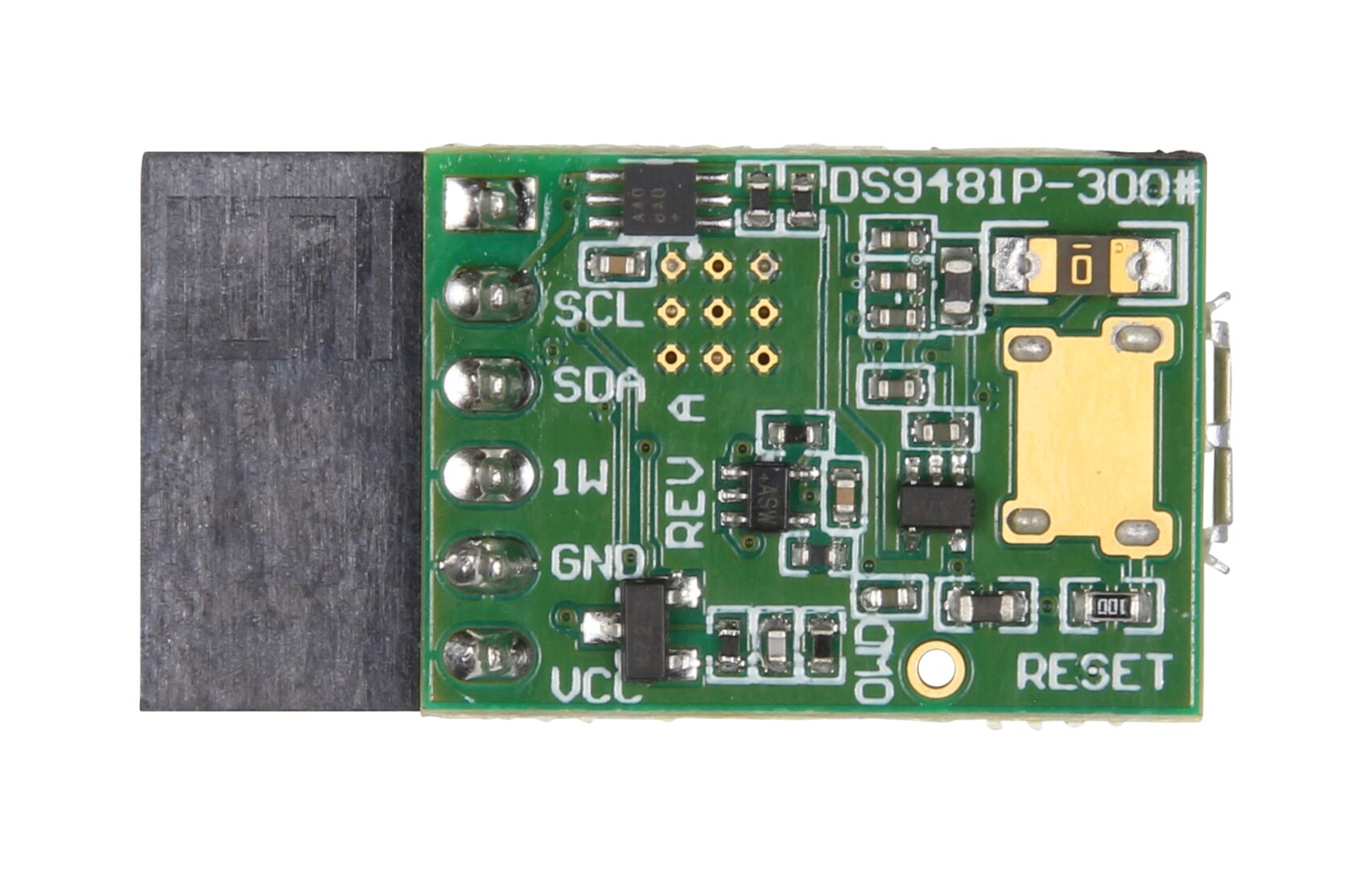

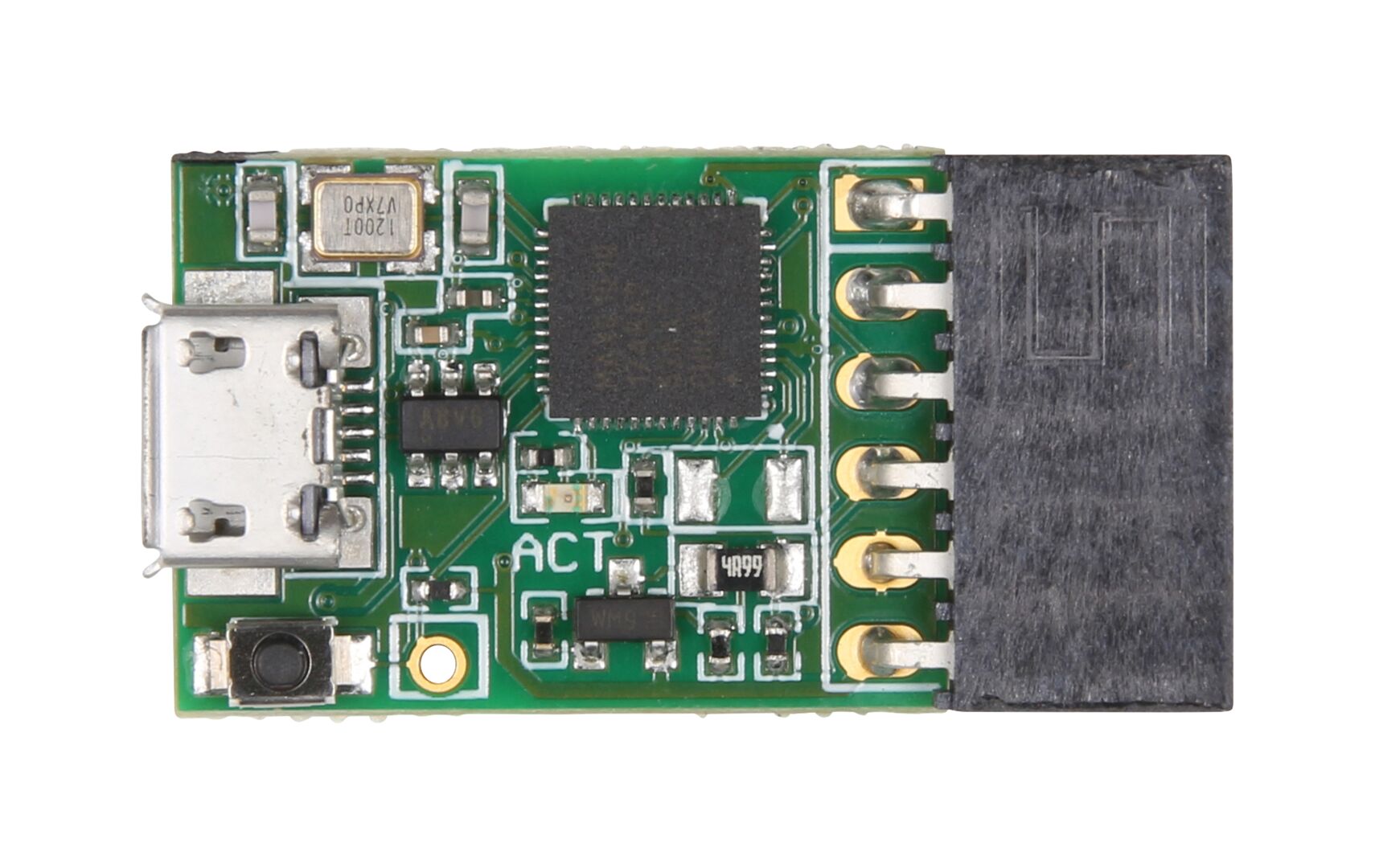

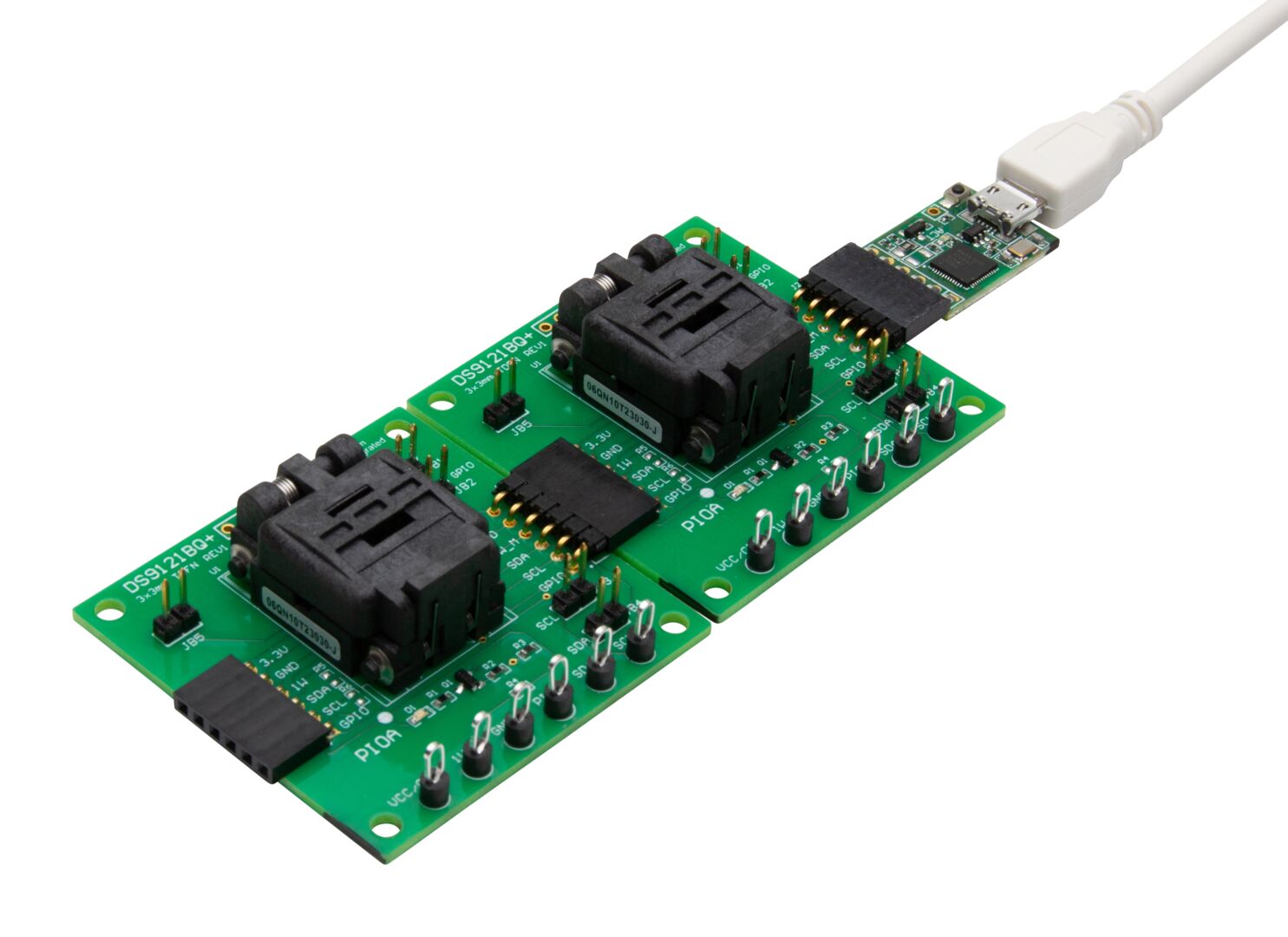

Evaluates: DS28E54 and DS2477
