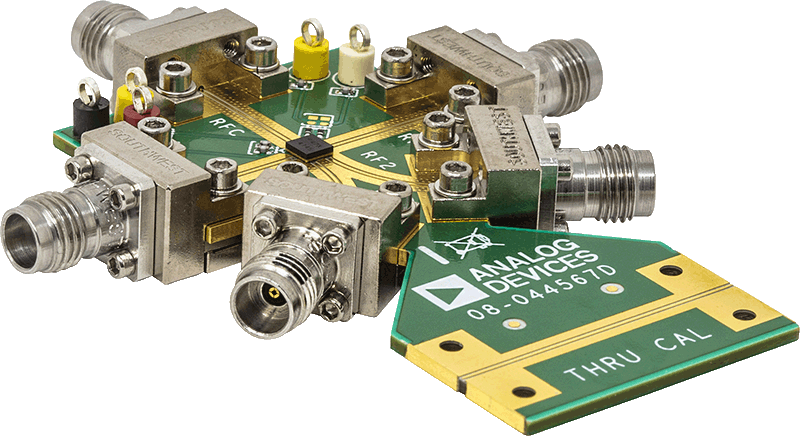

    1. EVAL-ADRF5046
      Evaluation Board & Kit
      ADRF5046-EVALZ is a fully populated, connectorized evaluation board using 4-layer, 62 mil thick, RO4003 PCB material.  For normal operation, two supply voltages +3.3V and -3.3V should be applied to the VDD and VSS test points respectively, while their ground voltages are connected to the GND test point. Two control input voltages, 0/+3.3V, should be applied to V1 and V2 test points to select the switch states; RFC to RF1 …
      EVAL-ADRF5046

      Documentation

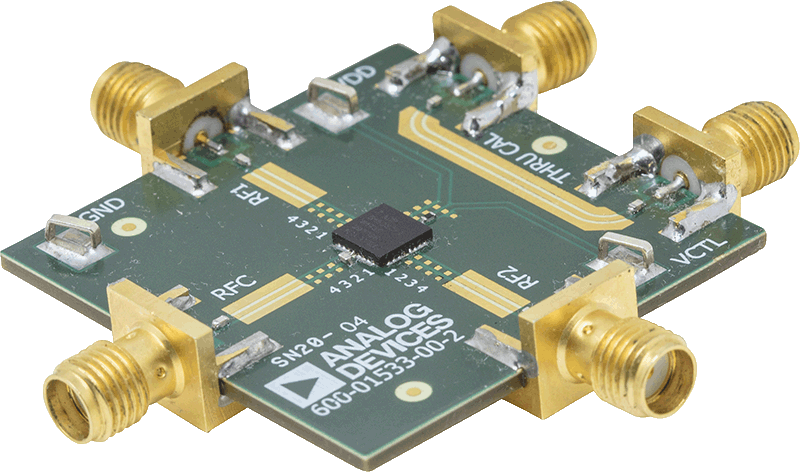

    2. EVAL-ADRF5160
      Evaluation Board & Kit
      Generate the evaluation PCB with proper RF circuit design techniques. Signal lines at the RF port must have a 50 Ω impedance, and the package ground leads and backside ground slug must connect directly to the ground plane. The evaluation board available from Analog Devices, Inc. upon request.
      EVAL-ADRF5160

      Documentation

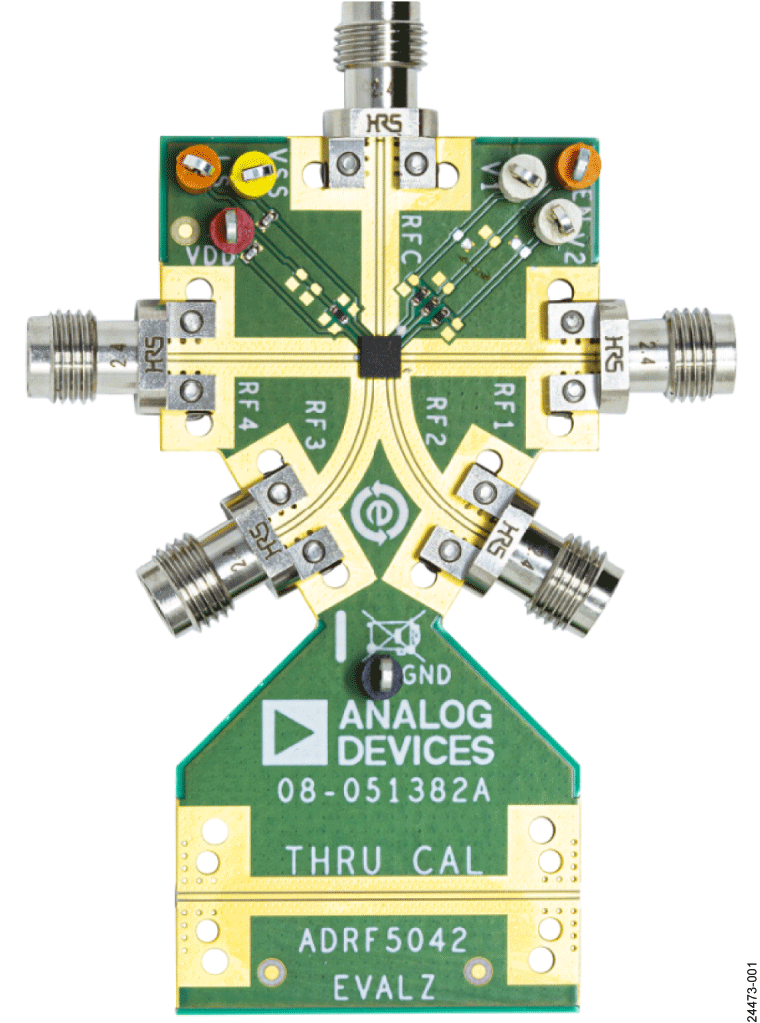

    3. EVAL-ADRF5042
      Evaluation Board & Kit
      The ADRF5042-EVALZ (see Figure 1) is designed to evaluate the features and performance of the ADRF5042 100 MHz to 44 GHz, nonreflective, SP4T switch manufactured in the silicon on insulator (SOI) process. For full details on the ADRF5042, see the ADRF5042 data sheet, which must be consulted in conjunction with this user guide when using the ADRF5042-EVALZ.
      EVAL-ADRF5042

      Documentation

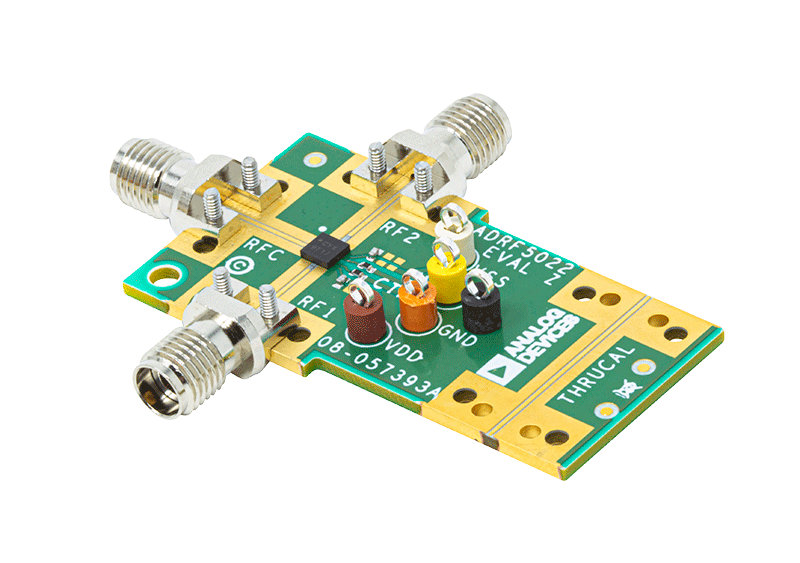

    4. EVAL-ADRF5026
      Evaluation Board & Kit
      ADRF5026-EVALZ is a fully populated, connectorized evaluation board using 4-layer, 62 mil thick, RO4003 PCB material.  For normal operation, two supply voltages +3.3V and -3.3V should be applied to the VDD and VSS test points respectively, while their ground voltages are connected to the GND test point. Two control input voltages, 0/+3.3V, should be applied to EN and CTRL test points to select the switch state between RFC-RF1 …
      EVAL-ADRF5026

      Documentation

    5. EVAL-ADRF5027
      Evaluation Board & Kit
      ADRF5027-EVALZ is a fully populated, connectorized evaluation board using 4-layer, 62 mil thick, RO4003 PCB material.  For normal operation, two supply voltages +3.3V and -3.3V should be applied to the VDD and VSS test points respectively, while their ground voltages are connected to the GND test point. Two control input voltages, 0/+3.3V, should be applied to EN and CTRL test points to select the switch state between RFC-RF1 …
      EVAL-ADRF5027

      Documentation

    6. EVAL-HMC8500PM5E
      Evaluation Board & Kit
      The HMC8500PM5E evaluation board is a 2-layer board fabricated using Rogers 4350 and using best practices for high frequency RF design. The RF input and RF output traces have a 50 Ω characteristic impedance. The board is attached to a heat sink using an electrically and thermally conductive epoxy providing a low thermal and low dc resistance path. Components are mounted using SN63 solder allowing rework of the surface-mount components without compromising the …

      Documentation

    7. DC2610A
      Evaluation Board & Kit
      Demonstration circuit 2610A features the LTC6953, an Ultralow Jitter, 4.5GHz Clock Distributor with 11 Outputs and JESD204B Support. By default, the DC2610A is powered from a single 3.3V supply. An option is provided to power to the DC2610A from dual supplies, allowing for the LTC6953’s output supply pins to connect to an LTC Silent Switcher® and the LTC6953 input supply pin to connect to a low noise LDO. All differential inputs …
      DC2610A

      Documentation

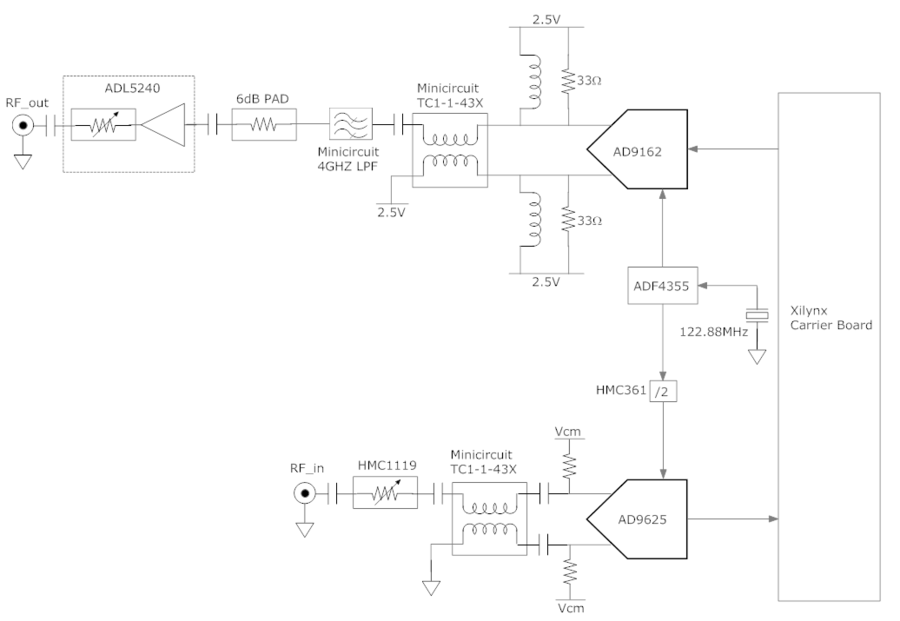

    8. AD-FMCOMMS11-EBZ
      Evaluation Board & Kit
      The AD-FMComms11-EBZ board is a system platform board for communication infrastructure applications that demonstrates the Direct to RF (DRF) transmitter and observation receiver architecture. Using high sample rate RFDAC(s) and RFADC(s), a number of components in previous generation transmitters can be eliminated, such as mixers, modulators, IF amplifiers and filters. The objective being to bring the ADC or DAC as close to the antenna as possible, leading to possibly more cost …
      AD-FMCOMMS11-EBZ

      Documentation

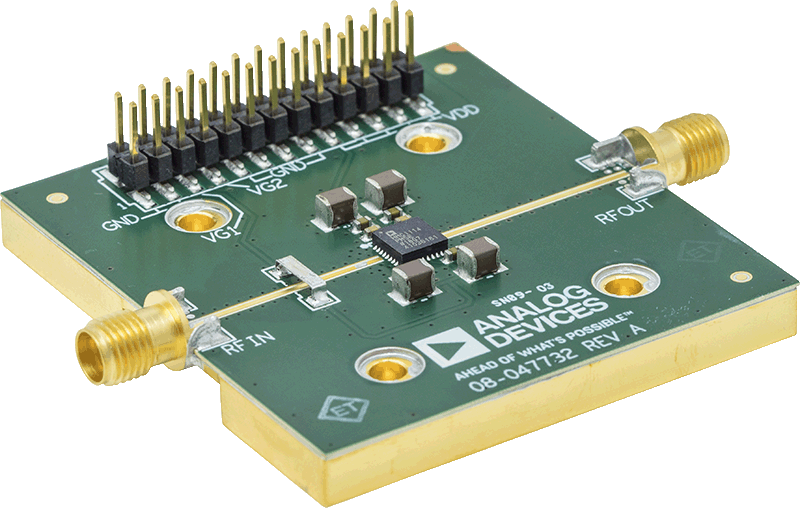

    9. EVAL-HMC1114PM5E
      Evaluation Board & Kit
      Use RF circuit design techniques for the circuit board used in the application. Provide 50 Ω impedance for the signal lines and directly connect the package ground leads and exposed paddle to the ground plane. Use a sufficient number of via holes to connect the top and bottom ground planes. The evaluation PCB is available from Analog Devices, Inc., upon request.
      EVAL-HMC1114PM5E

      Documentation

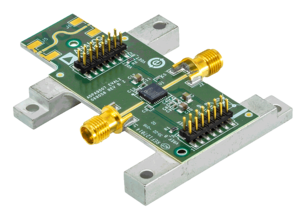

    10. ADPA9007-EVALZ
      Evaluation Board & Kit
      The EVAL-ADPA9007 consists of a 2-layer printed circuit board (PCB) fabricated from 10 mil thick Rogers 4350B copper clad mounted to an aluminum heat spreader. The heat spreader assists in providing thermal relief to the ADPA9007 and mechanical support to the PCB. The mounting holes on the heat spreader allow for attachment to larger heat sinks to improve thermal management. The RFIN and RFOUT/VDD ports are populated by 2.92 mm female …
      ADPA9007-EVALZ

      Documentation

    • <<
    • <
