ADI Renewable Energy—Solar PV Inverter Solutions

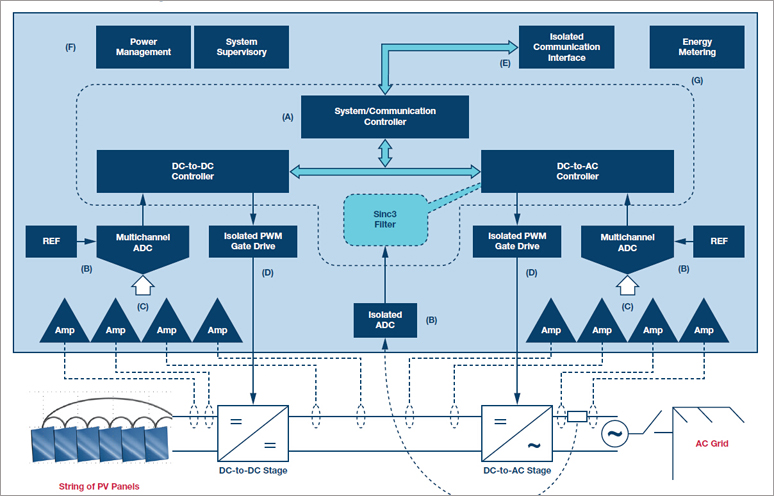

Introduction: ADI solar PV inverters solution provides precision measurement of current and voltage through highly accurate converters and amplifiers. Enabling power networks and smart grids through the use of high performance processing technology engineered with robustness and reliability. All of these can reduce time to market, and differentiated end equipment. ADI also provides the reference design/demo board/technical material/technical supports for this solution.
Main Challenges and System Considerations
- Reduces the dollar per watt system cost
- higher reliability isolation technology (iCoupler®) and new product——ADuM4121
- highly accurate converters and amplifiers
To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.
| Product Type | (A) Controllers and Processors | (B) ADC and Voltage References | (C) Signal Conditioning |
| Model |
ADSP-2147x/ ADSP-CM403F/ ADSP-CM419F |
ADCs: AD7606/AD7607 AD7266/AD7265 Isolated ADCs: AD7401A/AD7403 Reference: ADR34xx |
Op Amps: ADA4177-x/AD8479/ AD8604 Current-Sensing Amp: AD8212 |
| Product Type | (D) Isolation and Gate Drivers | (E) Power Management | (F) Communication Interfaces |
| Model |
Isolation Drivers: ADuM14x/ADuM6000 Isolated Gate Drivers: ADuM3223/ADuM4223/ ADuM4135/ADuM4136/ ADuM4121 |
DC-to-DC: ADP211x PMUs: ADP5034/ADP5071 Supervisors: ADM6305/ADM6306 |
RS-485: ADM2587E CAN: ADM3053/ADM3054 |
| Product Type | (G)Energy Meters | ||
| Model |
ADE7953/ADE7880 |
Circuits from the Lab® Reference Circuits for Energy Management
- 500 V Common-Mode Voltage Current Monitor (CN0218) — www.analog.com/en/cn-0218
- More reference circuits are available at — www.analog.com/circuits
Technical Articles/Application Notes
- The Next Wave of Power Conversion—Designing for Safety, Speed, and Cost Efficiency in Solar PV Inverters—www.analog.com/en/The-Next-Wave-of-Power-Conversion-Designing-for-Safety-Speed-and-Cost-Efficiency-in-Solar-PV-Inverters.pdf
- Recommendations for Control of Radiated Emissions with isoPower Devices (AN0971) — www.analog.com/en/an-0971.pdf
- ADSP-CM403 HAE Harmonics Analysis in Solar Applications (MS-2543)— www.analog.com/en/ms-2543.pdf
- ADSP-CM403 SINC Isolated Measurement for Solar-Applications (MS-2544) — www.analog.com/en/ms-2544.pdf
- Integration of Isolation for Grid-Tied Photovoltaic Inverters (MS-2356) — www.analog.com/en/ms-2356.pdf
- ADSP-CM41x Mixed-Signal Control Processors for Power Conversionvideo— www.analog.com/en/education/education-library/videos/4915396705001.html
- Dual Independent Core Safety Concept for Power Conversion— www.analog.com/en/education/education-library/videos/4786733692001.html
- Arcing detection demo video — www.analog.com/en/arcing-detection
- New Power Switch Technology and the Changing Landscape for Isolated Gate Drivers—www.analog.com/en/new-power-switch-technology-and-the-changing-landscape-for-isolated-gate-drivers.pdf
Design Tools/Forums
- ADI's Fastest and Most Accurate DC-to-DC Power Management Design Tool (ADIsimPower™) — www.analog.com/en/ADIsimPower
- Online Technical Support Community (EngineerZone®) — ez.analog.com
- The ADSP-CM40x EZ-Board® and EZ-KIT Lite® — www.analog.com/en/CM40X-EZ
- The ADSP-CM41x EZ-Board and EZ-KIT Lite® — www.analog.com/en/CM41X-EZ
If you need more ADI energy applications and products information, please visit: www.analog.com/en/energy
