EVAL-BFAV-EZEXT

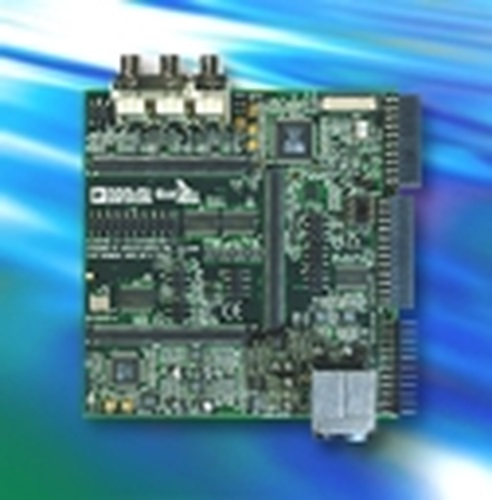

The Blackfin A-V extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the Blackfin evaluation system by providing audio and video circuitry and connectors for connecting to camera sensor evaluation boards and Flat Panel Display (FPD) modules. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

Top

Features and Benefits

Analog Devices AD1836 –96 kHz audio codec
Five 3.5 mm audio jacks
Analog Devices ADV7179 video encoder
Analog Devices ADV7183B video decoder
Connection to Flat panel display Interface

Product Details

The Blackfin A-V EZ-Extender daughter board allows developers to evaluate a diverse set of peripherals on the ADSP-BF533, ADSP-BF537 and ADSP-BF561 processors. The EZ-Extender contains audio and video circuitry, as well as connectors allowing connection to camera sensor evaluation boards and Flat Panel Display (FPD) modules. Applications and information about the use and connection of the various interfaces on the Blackfin A-V EZ-Extender are available from Analog Devices.

Part Number:
ADZS-BFAV-EZEXT

Tools Support:
Tel: 1-800-ANALOGD (262-5643)

Contact Support

For additional information, contact your local Analog Devices Sales Office or Distributor.

Package Contents

Blackfin A-V EZ-Extender
(plugs directly onto the expansion interface of the ADSP-BF533, ADSP-BF537, or ADSP-BF561 EZ-KIT Lite boards)

System Requirements

Windows XP Professional SP3 (32-bit only).
Windows Vista Business/Enterprise/Ultimate SP2 (32-bit only). It is recommended to install the software in a non-UAC-protected location.
Windows 7 Professional/Enterprise/Ultimate (32 and 64-bit). It is recommended to install the software in a non-UAC-protected location.
Minimum of 2 GHz single core processor, 3.3 GHz dual core is recommended.
Minimum of 1 GB memory (RAM), 4 GB is recommended.
Minimum of 2 GB hard disk (HDD) space is required.
CrossCore Embedded Studio for Analog Devices Processors.
VisualDSP++ 5.0 and Latest Update.
